Aux LED - SQUADRON SAE
M.R.P.: Rs. 36,000.00 /-
25-7801
M.R.P.:
Regular price Rs. 36,000.00 /-Inclusive of all taxes
Couldn't load pickup availability
Enter bike model above for team to double check compatibility
NET QUANTITY : 2N ( 1 PAIR) + 1N HARNESS
- BEST BEFORE :
- COMMODITY :
- COUNTRY OF ORIGIN:MEXICO
- WARRANTY INFO :
For products in stock - Same day dispatches Mon-Sat with 2pm as cut off

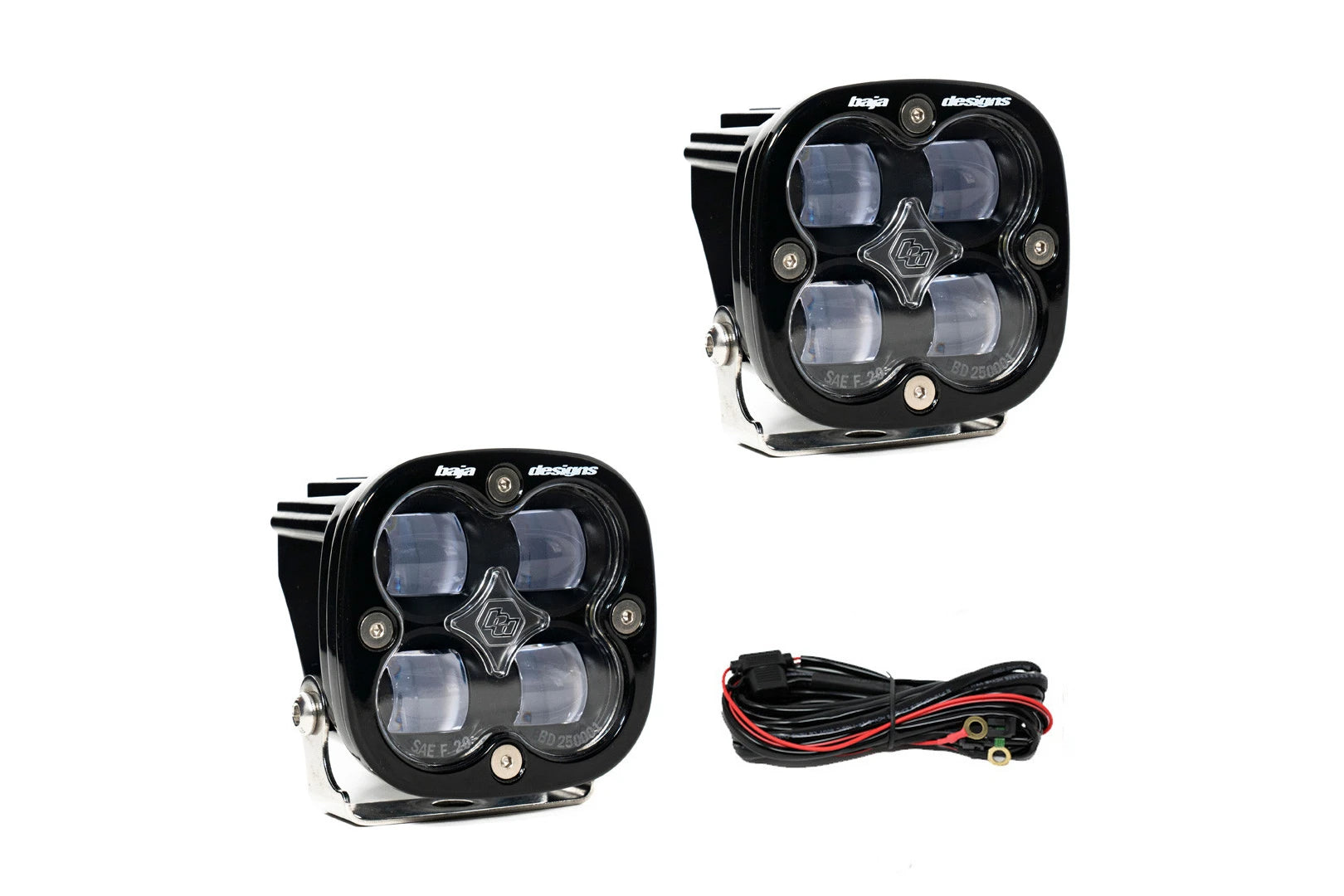

Baja Designs next generation Squadron® SAE.
Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model.
The all-new Squadron® SAE delivers
- 2,420 lumens per light with output reaching up to 15,800 candela
- 29 watts
Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather.
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty.
Dimensions per lights
| Depth (cm) | 7.04 |
| Height (cm) | 7.70 |
| Length (cm) | 7.70 |
| Weight (g) | 340 |
Specifications per light
| Amperage Rating (A) | 2.1 |
| Average Rated Life (hr.) | 49930 |
| Beam Pattern | SAE Fog |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2420 |
| Description | SAE Fog; Clear; Pair |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Forward Projecting |
| Lighting Type | Cree LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
Standards & Compliance
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.
