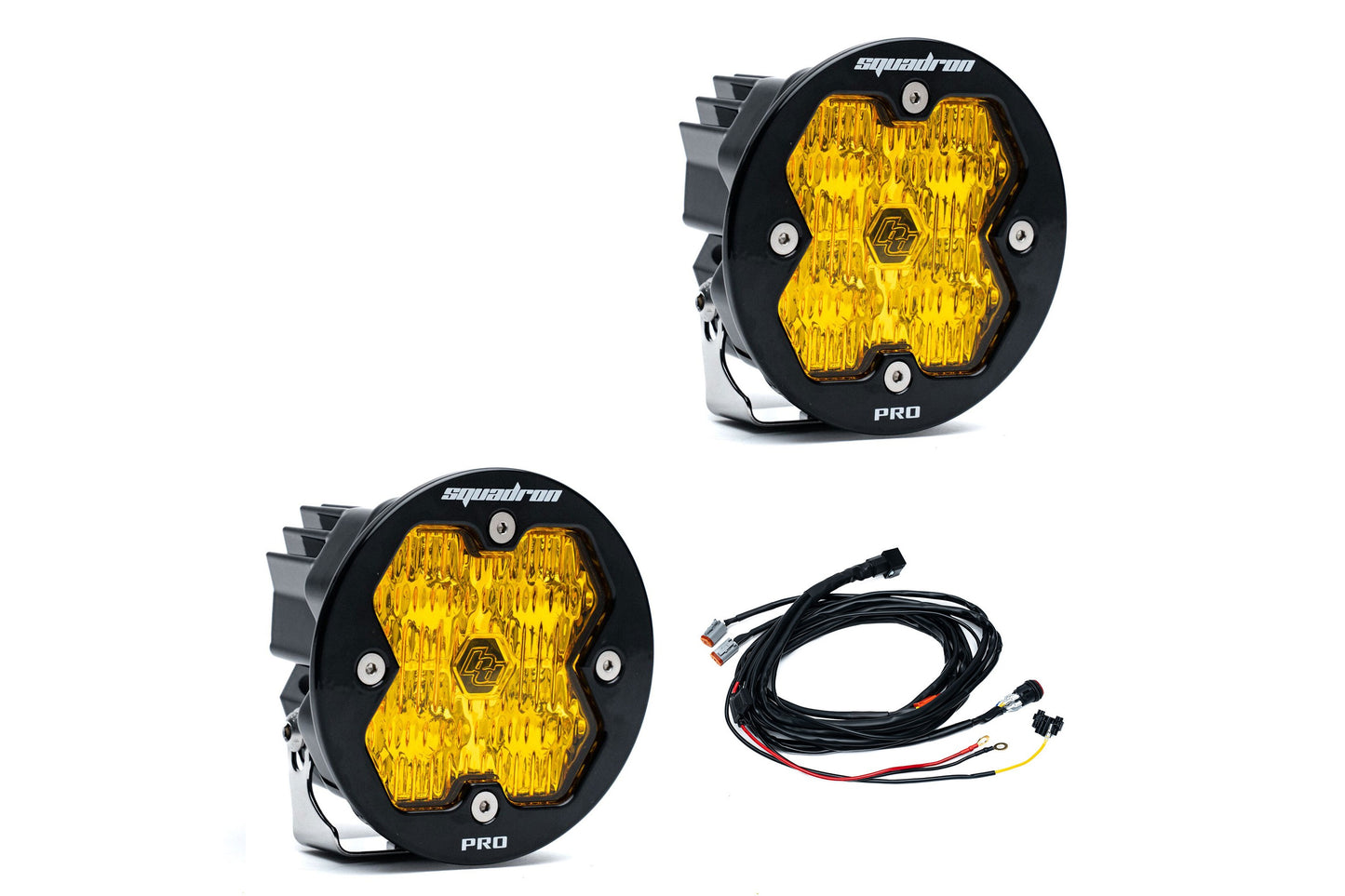

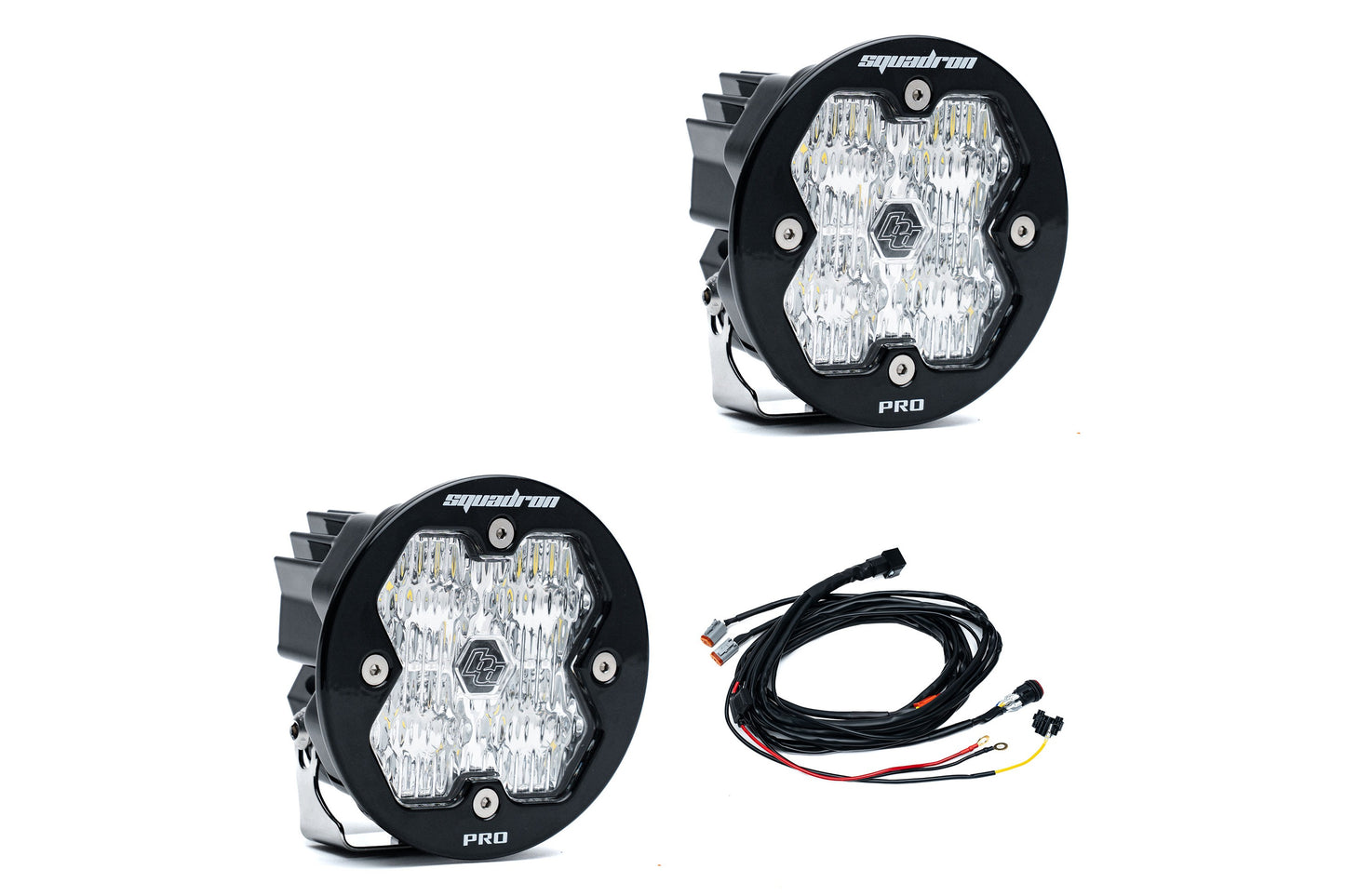

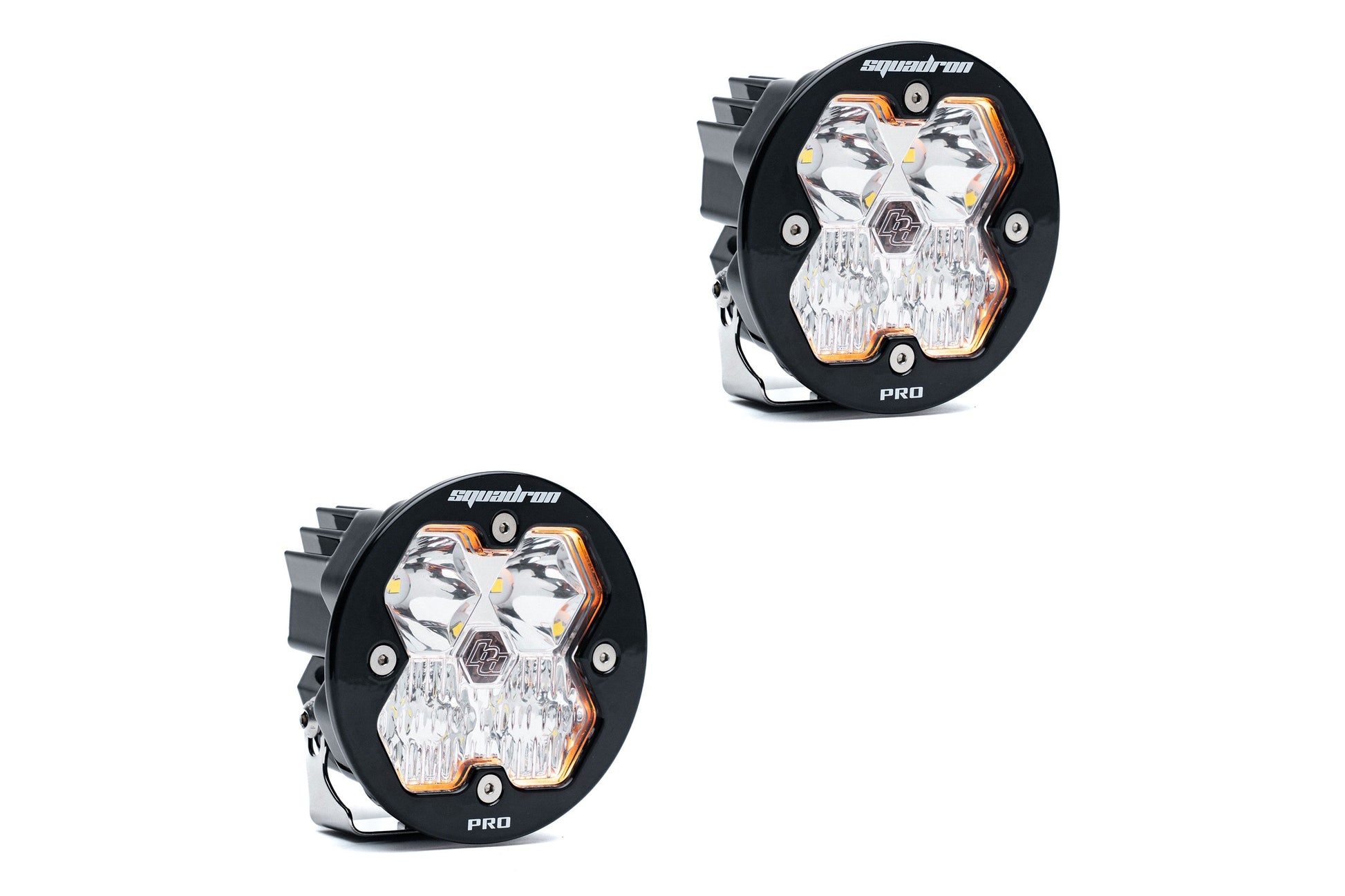

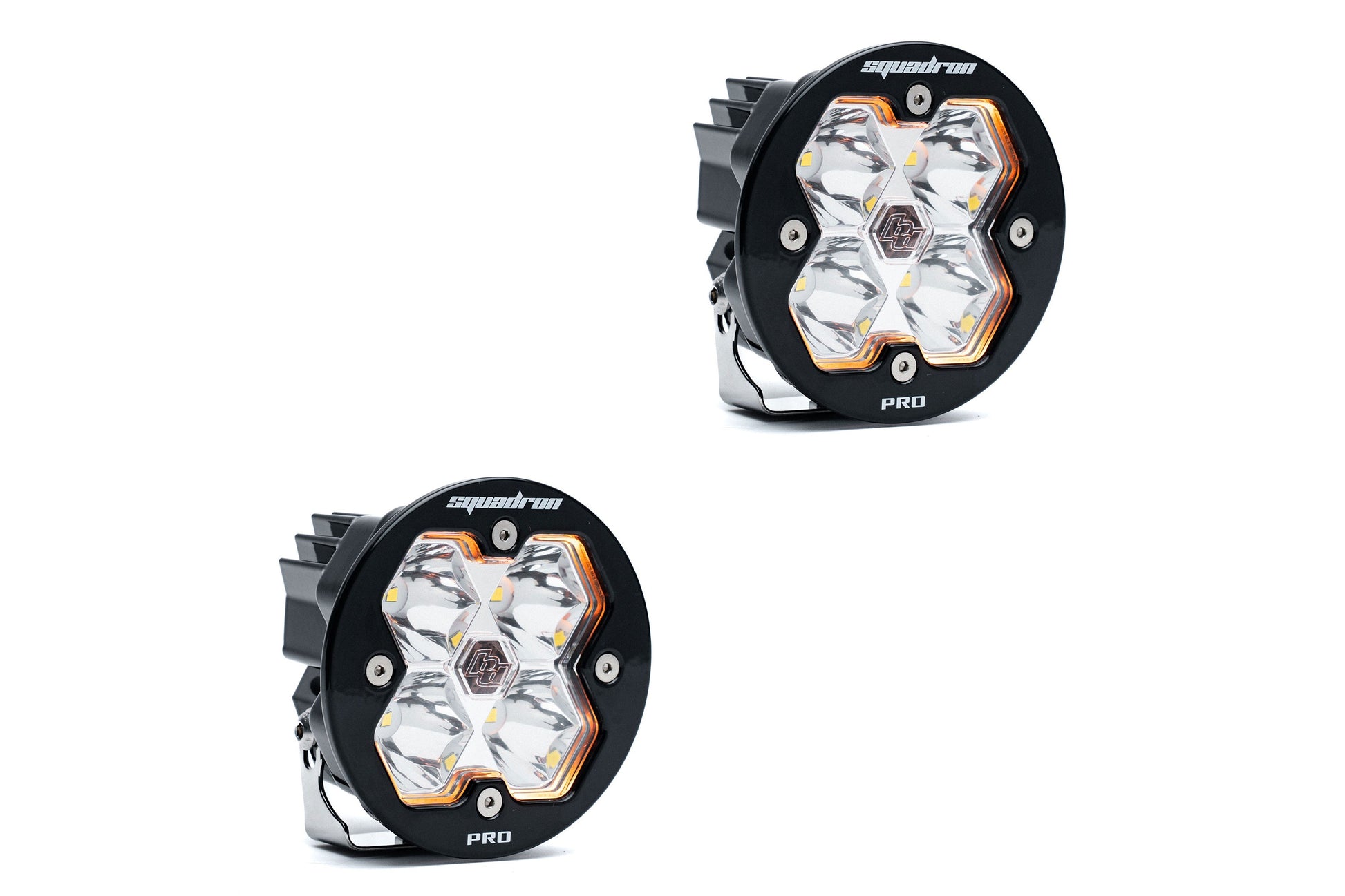

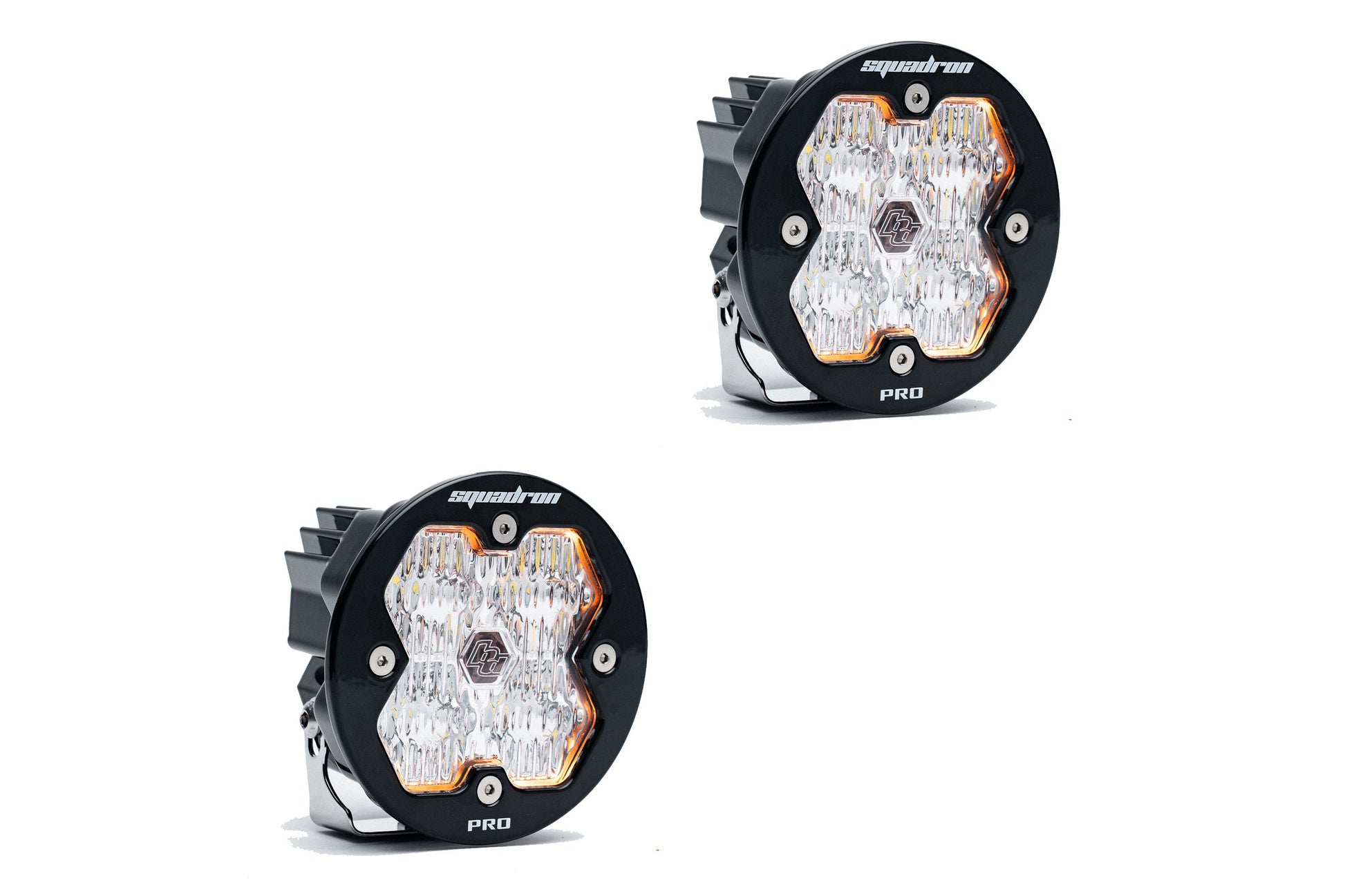

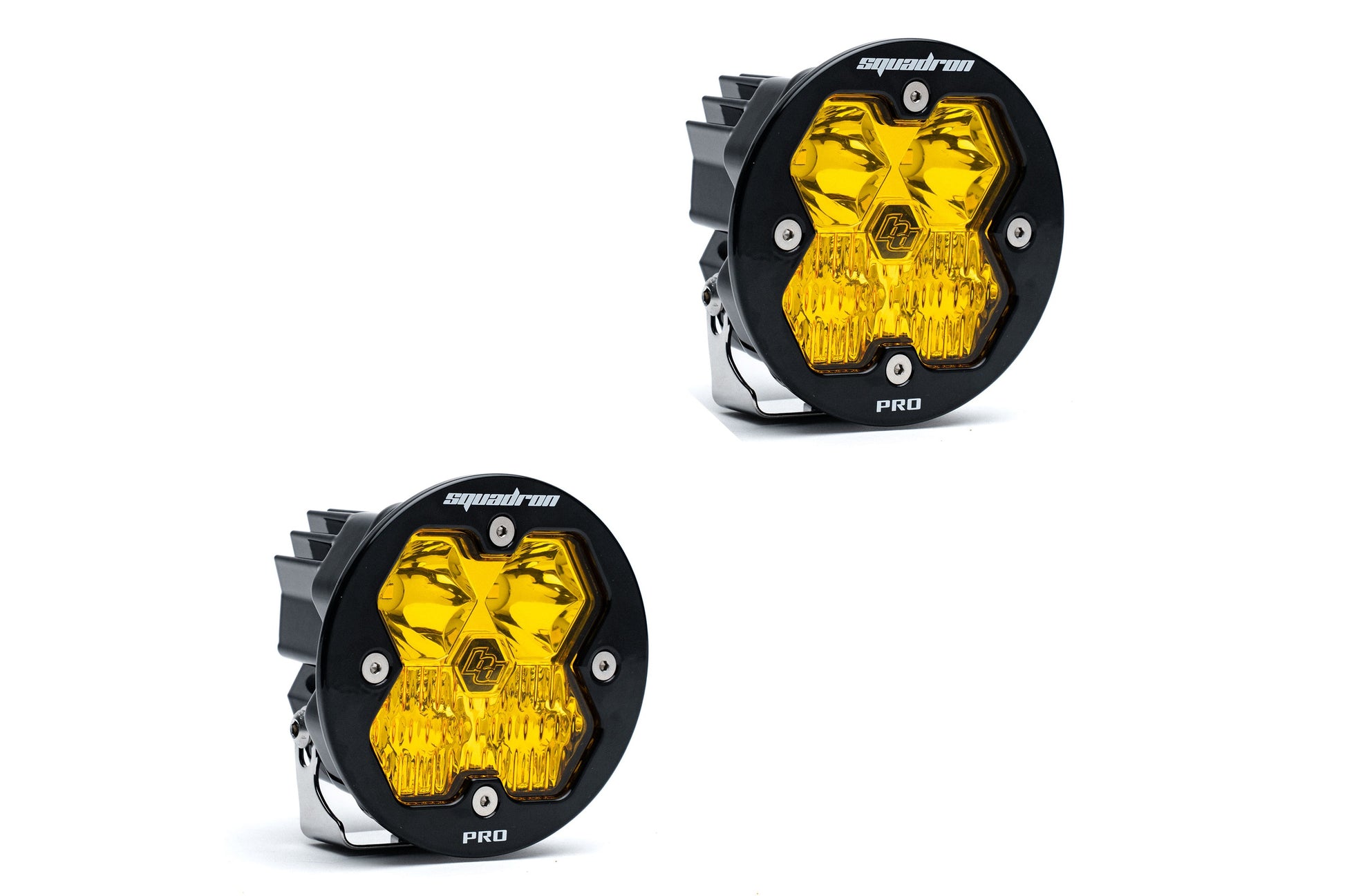

Aux LED - SQUADRONS 2.0 PRO (ROUND)

The Baja Designs Squadron-R 2.0 Pro is the next evolution of our most trusted compact LED light pod. Completely redesigned from the inside out, the Squadron-R 2.0 Pro features a larger 4-inch round bezel for those that want more traditional styling and for aftermarket bumpers with a round hole, next generation optics, and a powerful 5,921lumen output at 65W—delivering a 21% performance increase over the previous generation with improved beam control and efficiency. Precision engineered optics produce a refined beam pattern that projects light farther and wider while minimizing spill, giving you more usable illumination exactly where you need it.

Whether you're navigating tight trails, wide open desert, or long road trips, the Squadron-R 2.0 Pro delivers maximum clarity and confidence after dark. Every detail has been upgraded to raise the standard for compact LED light pods while preserving the proven reliability Baja Designs is known for. The new housing, featuring our signature gloss black aluminum finish provides a bold, modern look while maintaining the unmistakable Baja Designs identity.

New enhancements include updated lens patterns tuned for the redesigned optics, a rugged 4pin Deutsch connector for increased durability, and an all-new color selectable backlight with nine selectable colors to match your vehicle’s style. Improved uService® thanks to the new secure clip‑in reflectors for easy lens changes and a redesigned gasket for superior sealing and long-term protection against the elements. A new mounting bracket also offers increased vertical adjustability for more precise aiming. Setting a bold new benchmark for LED auxiliary lighting, the Squadron-R 2.0 Pro is engineered for enthusiasts who demand uncompromising nighttime visibility. Like all Baja Designs products, it’s backed by our 30Day Satisfaction Guarantee and Limited Lifetime Warranty for complete peace of mind.

Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• Color selectable backlight with 9 selectable colors to match any vehicle
• New clip‑in reflectors stay secure during lens changes, improving uService®
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4‑pin Deutsch connector for improved wiring harness durability

 Squadron-R 2.0 Pro Specifications:

• Lumens: 5,921
• Watts/Amps: 65W/5.2A @13.8V
• Operational Voltage: 12-32V
• IP69K Rated

ELS™ Scores:

• Squadron-R 2.0 Pro Spot Clear: ELS 86°/6.1/454/4930
• Squadron-R 2.0 Pro Driving Combo Clear: ELS 128°/7.4/403/4955
• Squadron-R 2.0 Pro Wide Cornering Clear: ELS 132°/7.6/159/4946
• Squadron-R 2.0 Pro Work/Scene Clear: ELS 148°/8.0/64/4575

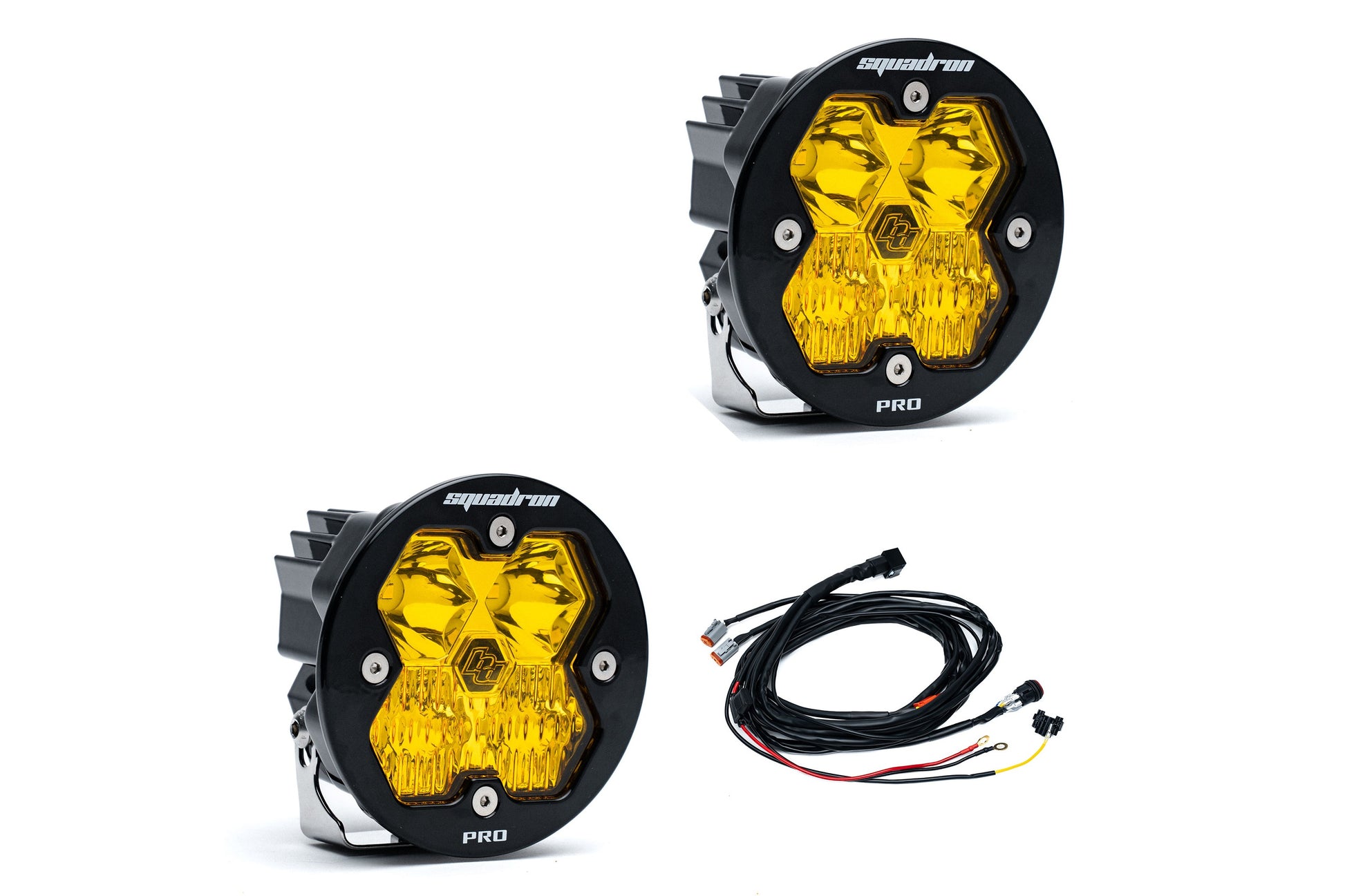

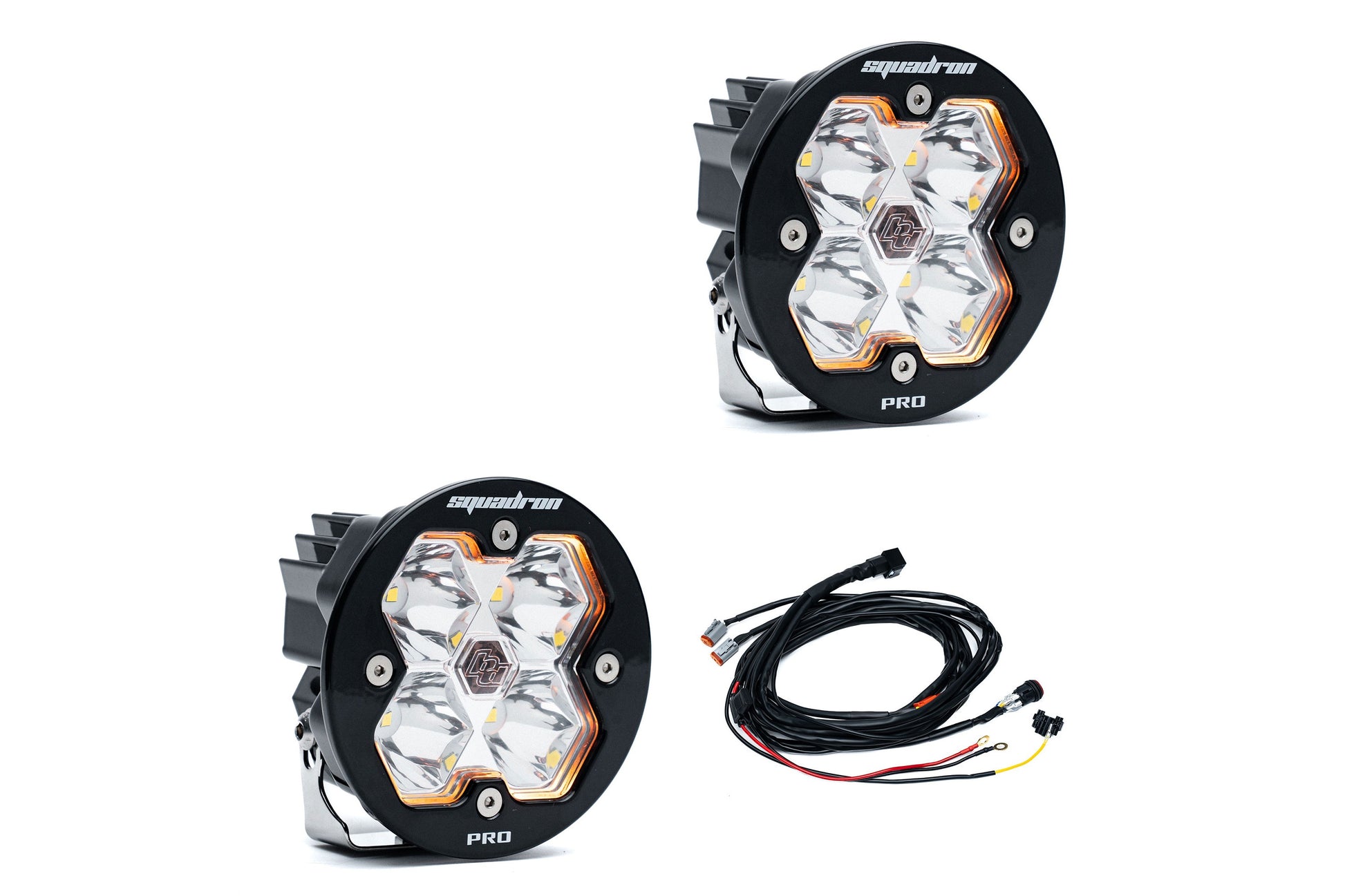

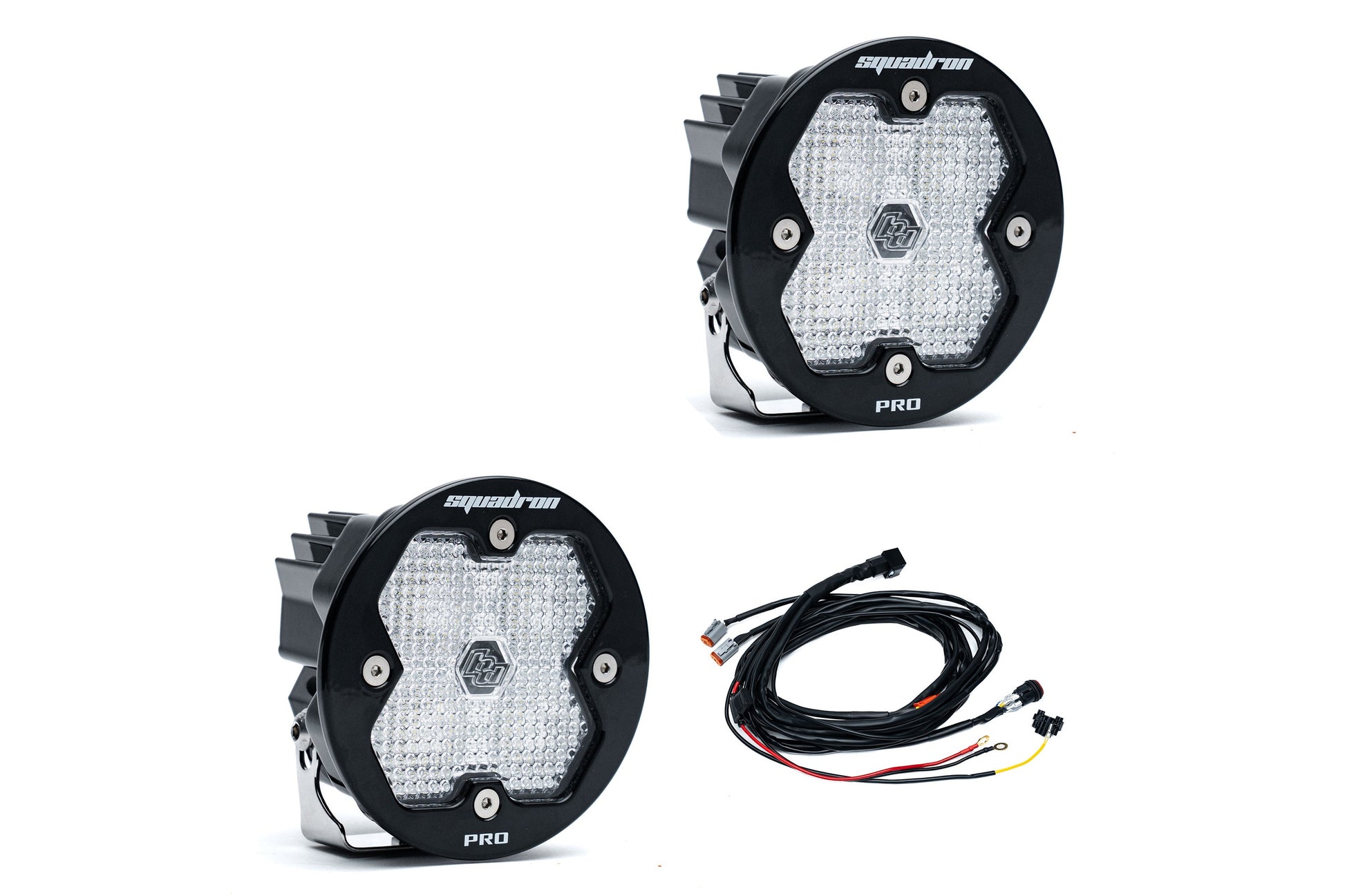

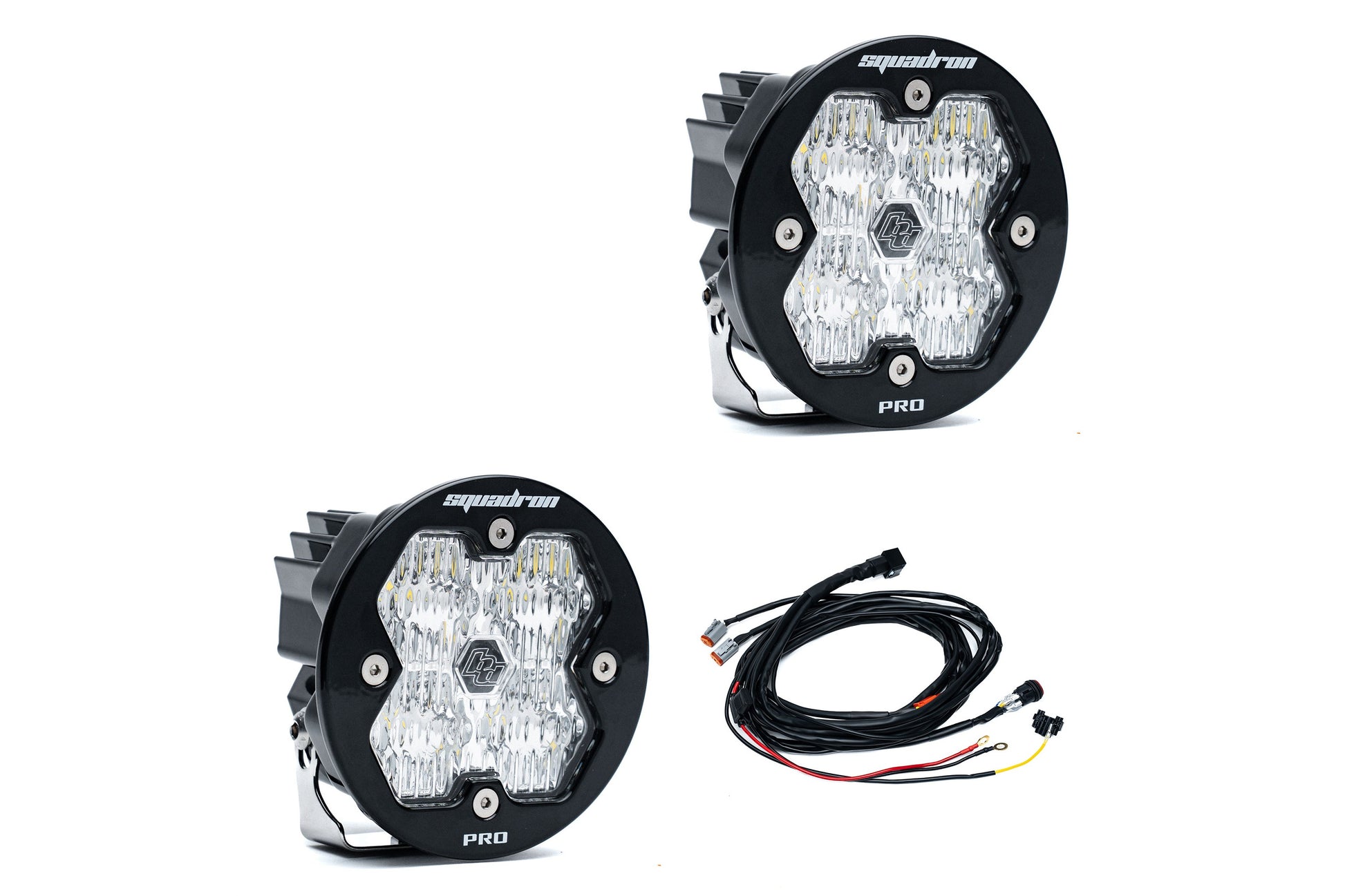

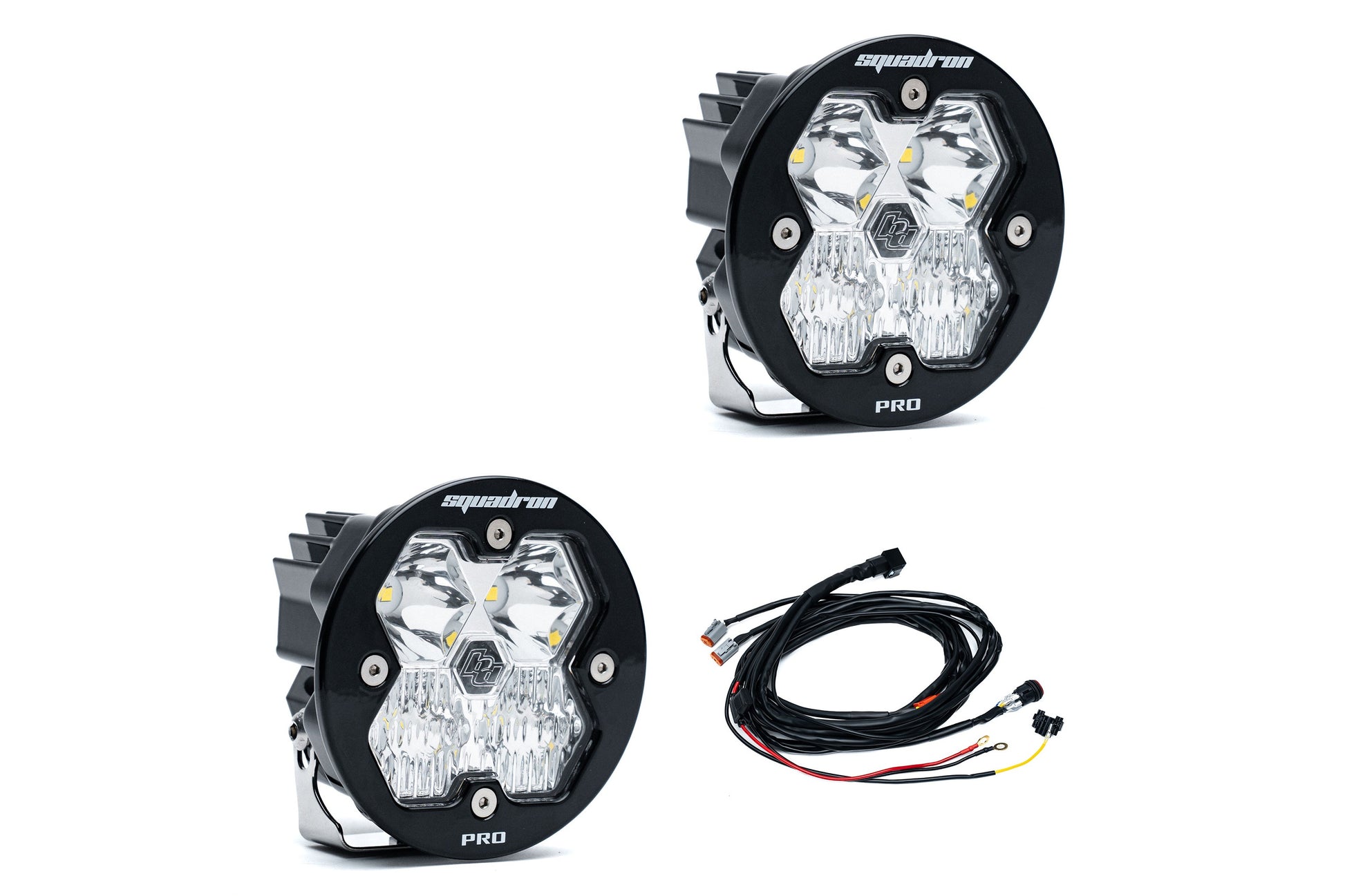

Harness Kit Includes:

• (2x) Squadron-R 2.0 Pro Light Pods
• (1x) Wiring Harness
• All Necessary Mounting Hardware

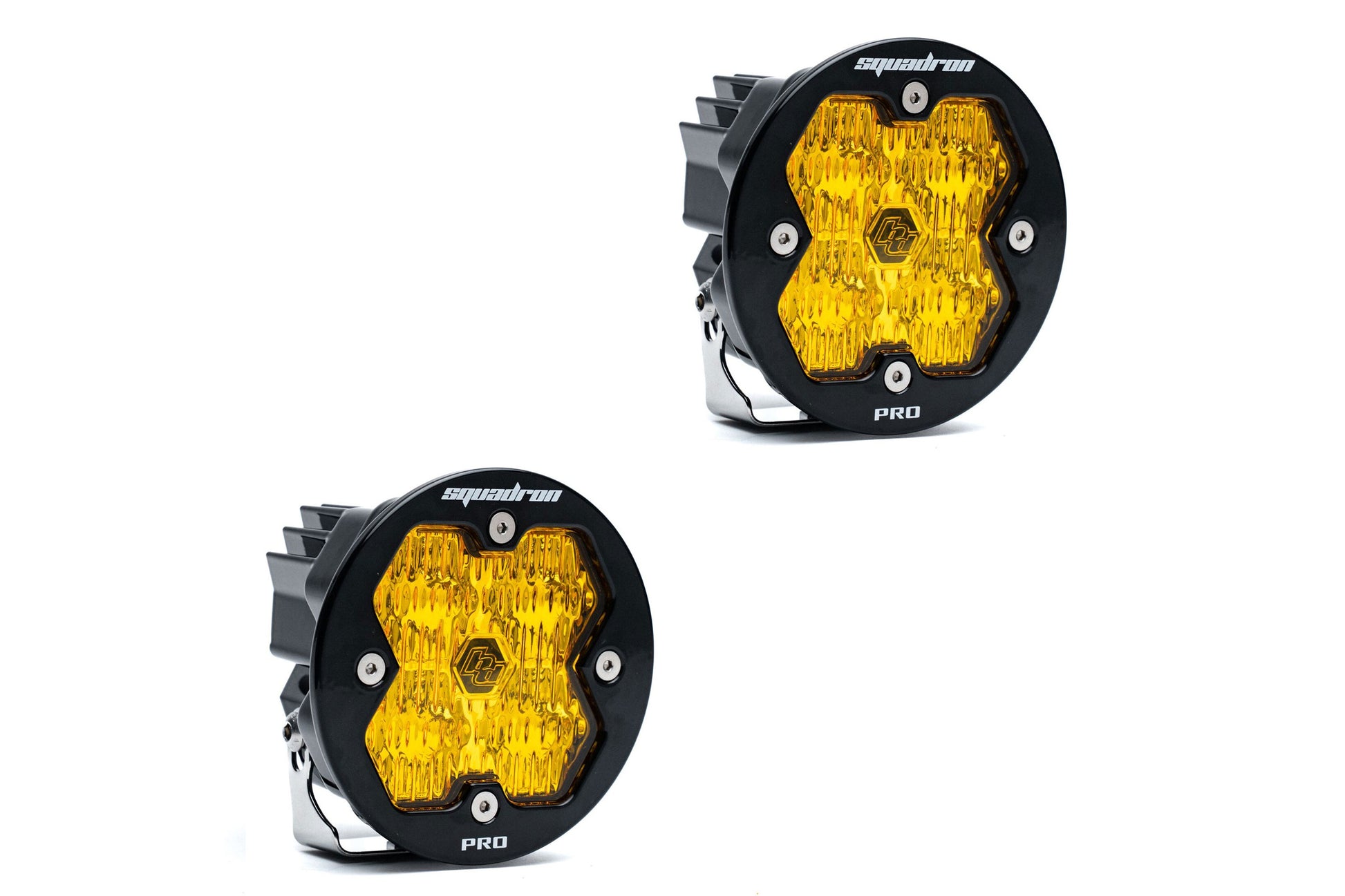

Non-Harness Kit Includes:

• (2x) Squadron-R 2.0 Pro Light Pods
• All Necessary Mounting Hardware

wiring diagram
