BMW F 450 GS Protection - "Doubleshock" Axle Protection Pads (Rear)

FOR THE BMW F 450 GS: WUNDERLICH AXLE PROTECTION PADS DOUBLESHOCK REDUCE OR PREVENT COSTLY DAMAGE TO THE REAR AXLE

Function and product features of the DOUBLESHOCK axle protection pads

• Effective, dual protection against impact and abrasion damage to the swing arm, wheel axle and brake system
• Proven in racing and off-road use
• The progressive, increasing sliding surface can shorten the sliding phase in terms of both time and distance during prolonged road contact
• Ideal combination with crash bar systems and pads, as the vehicle is additionally supported by the axle protection pads during the „sliding phase“
• Simple, safe and quick installation
• Complete with installation kit

Technical data

• Material
  • Highly resilient special plastic, impact/shock-absorbing, with friction resistance determined by the component geometry
• Installation position
  • Rear wheel axle

Your Wunderlich benefits

• Wunderlich design. Functional and integrated.
• Made by Wunderlich

PROVEN IN RACING AND OFF-ROAD USE: WUNDERLICH AXLE PROTECTION PADS DOUBLESHOCK

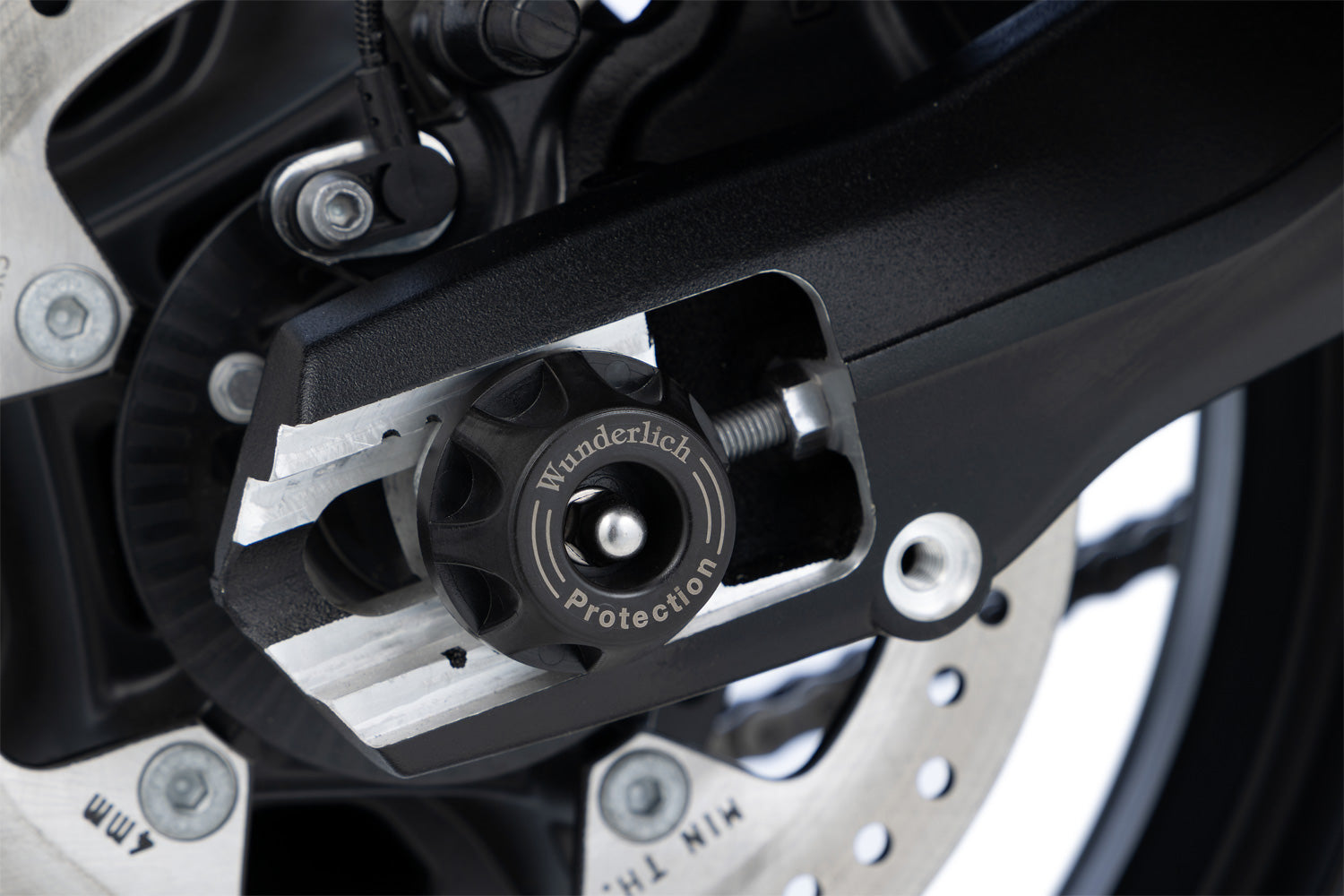

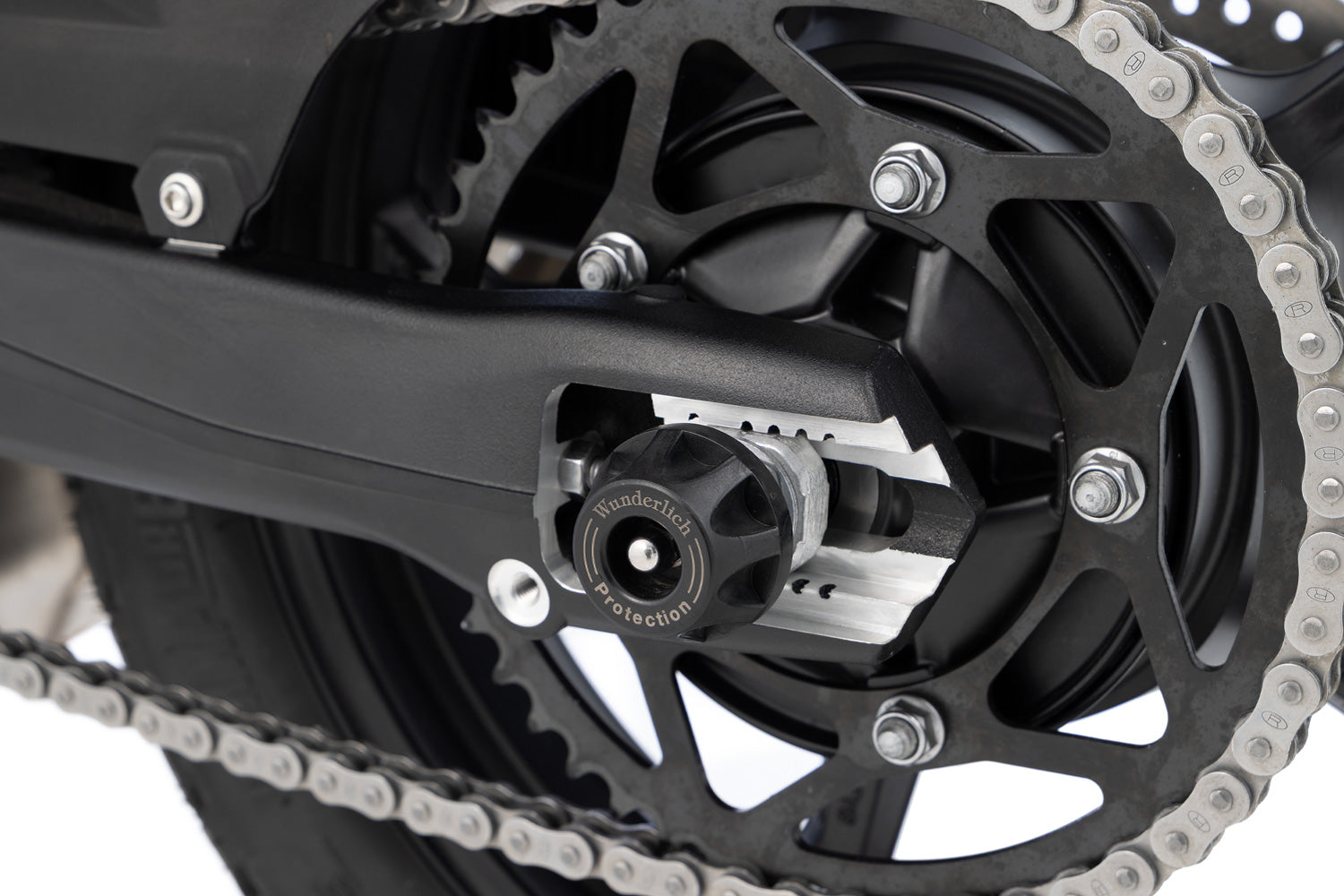

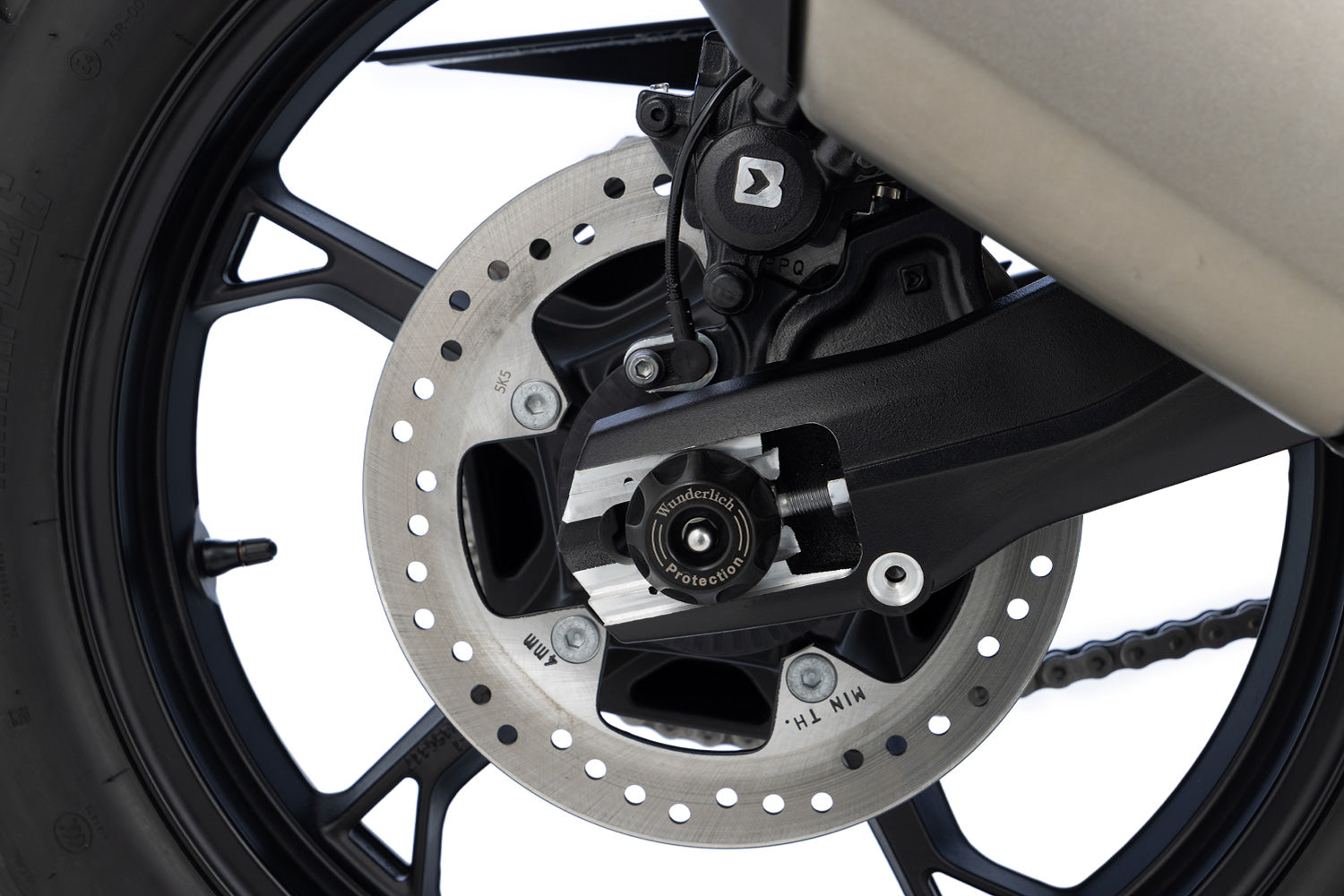

In the event of the motorcycle tipping over or in the case of a fall, the axle protection pads ensure that the swing arm, wheel axle, sprocket and brake system are effectively protected against damage.

The protection pads space these components away during point or sliding contact with the ground or road surface, thereby reducing or preventing costly damage to the motorcycle. In addition to the choice of material, we have constructively integrated and tested two essential, specific properties in racing: damping and friction behaviour during the sliding phase.

Damping: The first positive property to mention is damping, which can fully or partially absorb and take up part of the impact energy in the event of sudden force effects.

The second positive property concerns the friction behaviour of the axle protection pad. Thanks to the special component geometry, the effective contact or sliding surface increases progressively as the load increases. As a result, the protection pad initially offers comparatively low friction during light contact, while more energy is dissipated during prolonged sliding contact with the road surface. This can help reduce both the duration of the sliding phase and the motorcycle’s sliding distance.

For optimum protection of your machine, we recommend combining our axle protection pads with our vehicle-specific crash bar systems, for which we offer additional protection pads.
