BMW R 1300 GS / Adventure Protection - Header Pipe Guard "ULTIMATE"

WUNDERLICH HEADER PIPE GUARD ULTIMATE – EXTENDED PROTECTION FOR HEADER PIPES, ENGINE AND PERIPHERALS

Function and Product Features

• Extends the protection zone of engine protection and crash bars to include the left and right header pipes
• Effective protection for the header pipes against stone impact and debris – especially off-road
• Prevents damage from rocks in the event of tip-overs or falls
• Reduces the risk of collisions during fast off-road riding, particularly in compressions or bottom-outs
• Protects the header flange from unnecessary mechanical stress caused by hard impacts
• Edge design integrates perfectly into the engine layout

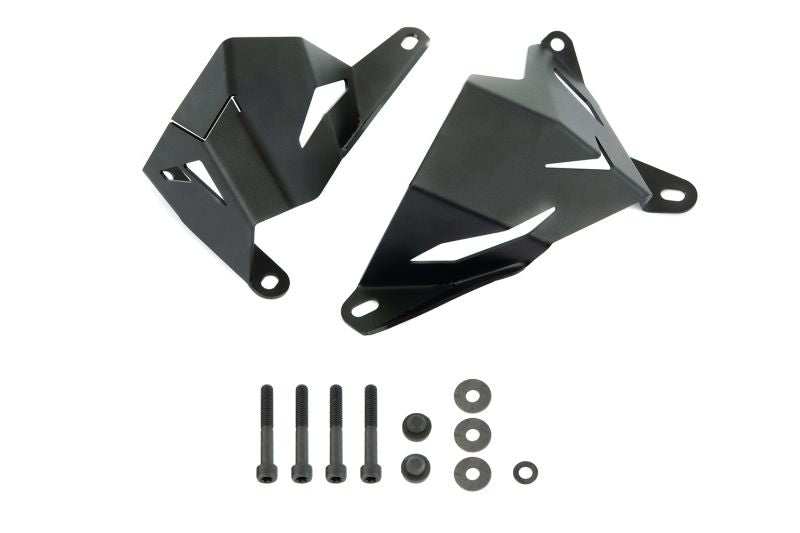

• Compact, three-dimensionally bent construction made of 2.5 mm thick, corrosion-resistant stainless steel
• Matte black powder-coated, with integrated drainage slots to release water and prevent heat build-up
• High resistance and protective effectiveness thanks to solid two-point mounting and structural rigidity
• Easy to install
  • Compatible with our Wunderlich engine crash bars ULTIMATE PRO (#13200-00x), ULTIMATE (#13201-00x), and GUARD (#13202-002) – also mountable without crash bars
  • Compatible with our Wunderlich engine protector (#13220-002) as well as the original engine guard

Technical Specifications

• Material
  • Stainless steel, high-quality finish, carefully processed, matte powder-coated
• Dimensions
  • Material thickness: 2.5 mm
• Colour
  • Black, matte

Your Wunderlich Benefits

• Wunderlich design – functional and integrated
• Made by Wunderlich

ULTIMATE – WHEN IT COUNTS! PURPOSEFUL DESIGN FOR MAXIMUM RESILIENCE AND SEAMLESS INTEGRATION

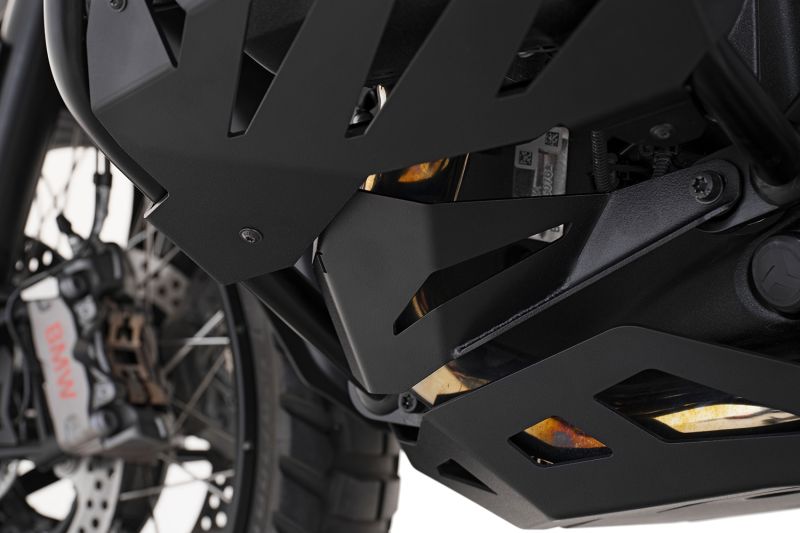

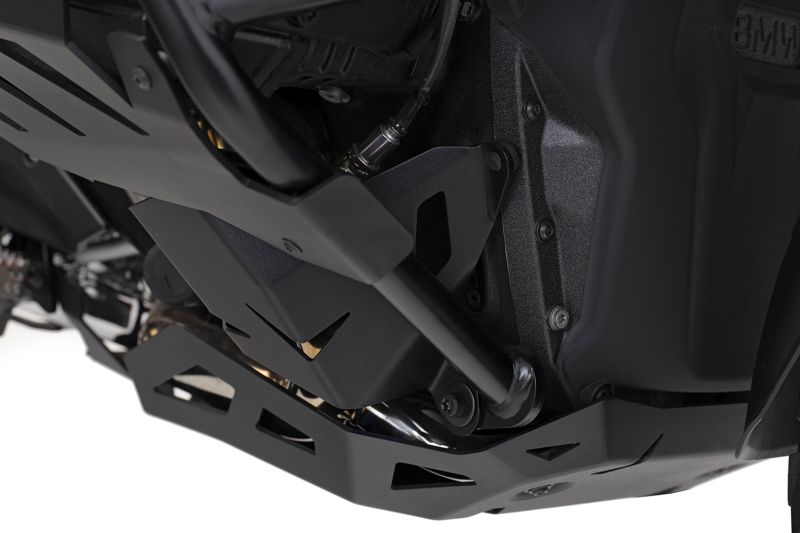

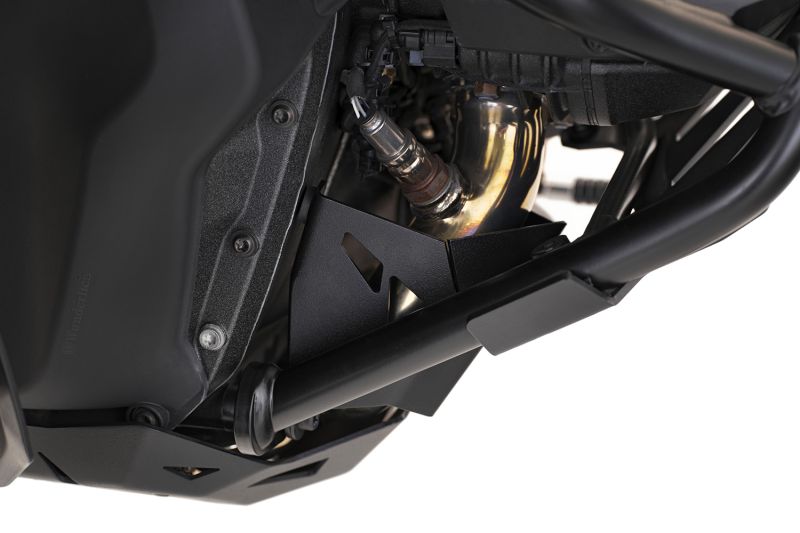

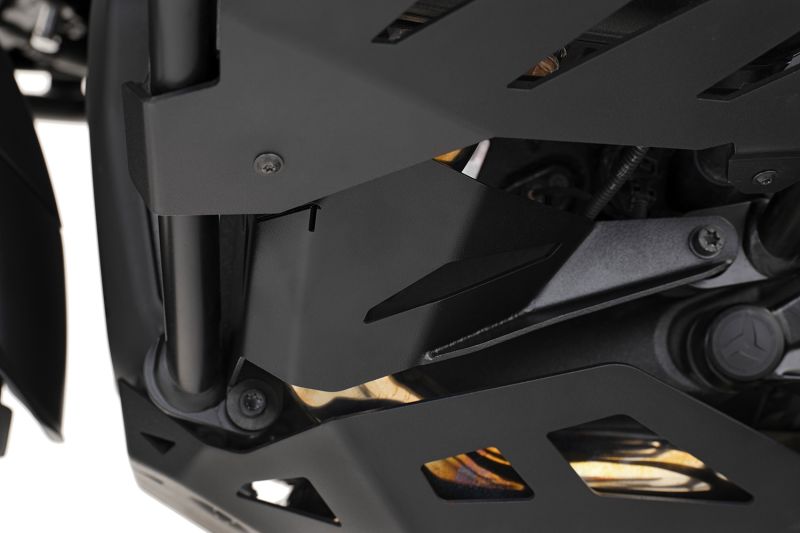

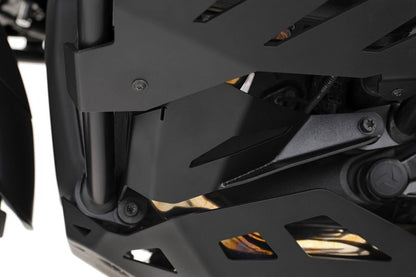

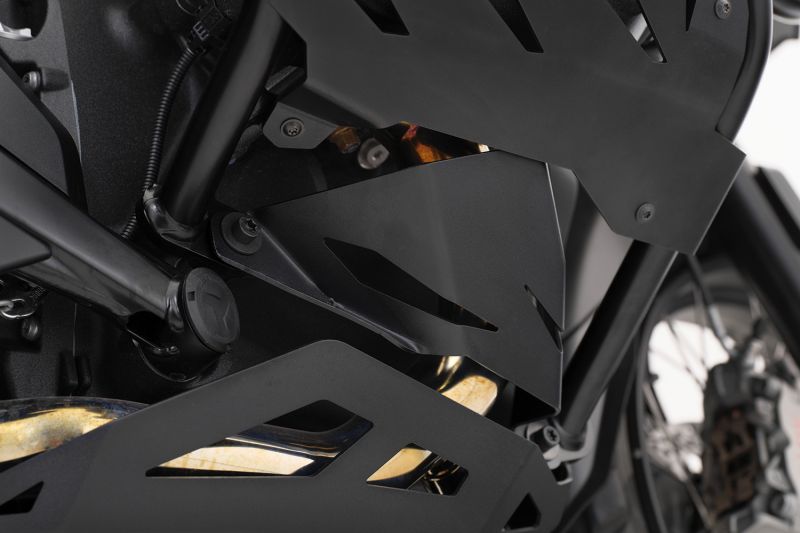

The ULTIMATE header pipe guard extends the protective effect of engine protection and crash bars to the left and right header pipes. It contributes significantly to comprehensive protection of the engine and its peripherals.

On the road – and even more so off-road – the three-dimensionally formed stainless steel guard effectively shields the header pipes from stones and other debris.

Its protection is especially vital in rocky terrain, rubble fields, or over ledges. Experience shows that protruding rocks can quickly cause visible dents to the header pipes in the event of a fall or tip-over. Fast-paced off-road riding, particularly during compression or unexpected impacts, may also result in harsh contact with immovable rocks – often causing unnecessary mechanical stress at the header flange on the cylinder head.

Our ULTIMATE header pipe guard helps prevent such risks and minimises the chance of the types of damage described above.

The compact, three-dimensional design made from solid, corrosion-resistant 2.5 mm stainless steel integrates perfectly with the engine’s layout thanks to its edge styling. The matte black powder coating adds durability, and water drainage slots support flow-through in water crossings and reduce heat build-up.

The combination of two-point mounting and structural stiffness ensures the excellent durability and protection offered by the ULTIMATE header pipe guard.

Easy installation: compatible with Wunderlich engine crash bars ULTIMATE PRO, ULTIMATE, and GUARD – or installable without bars – as well as with our Wunderlich ULTIMATE engine protector.
