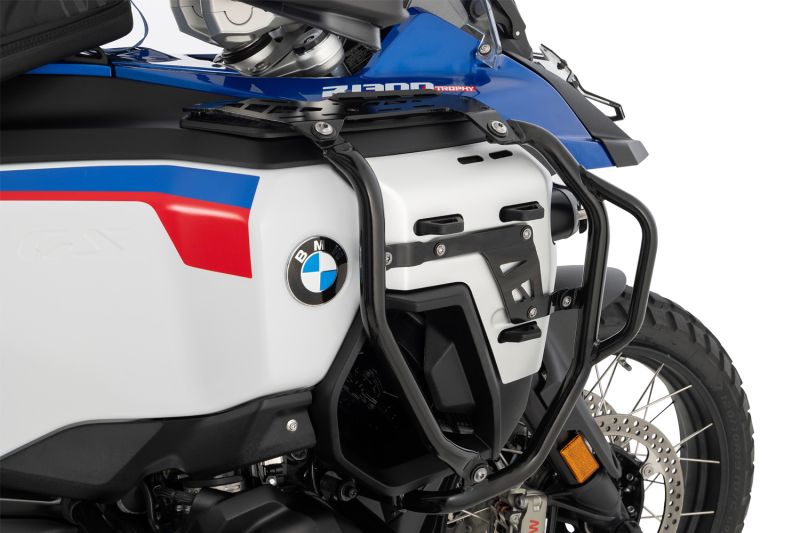

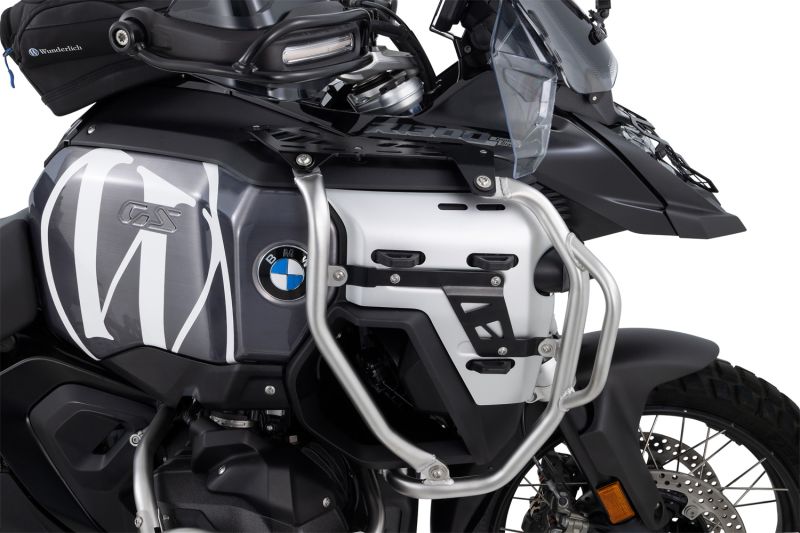

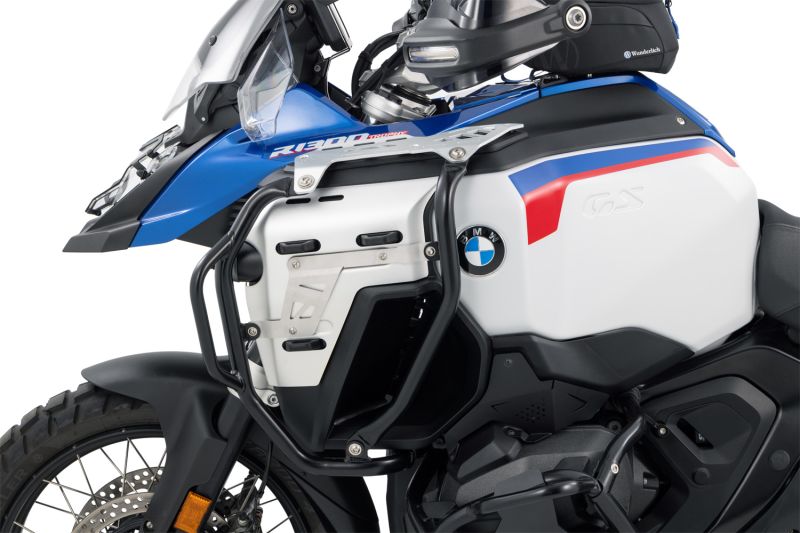

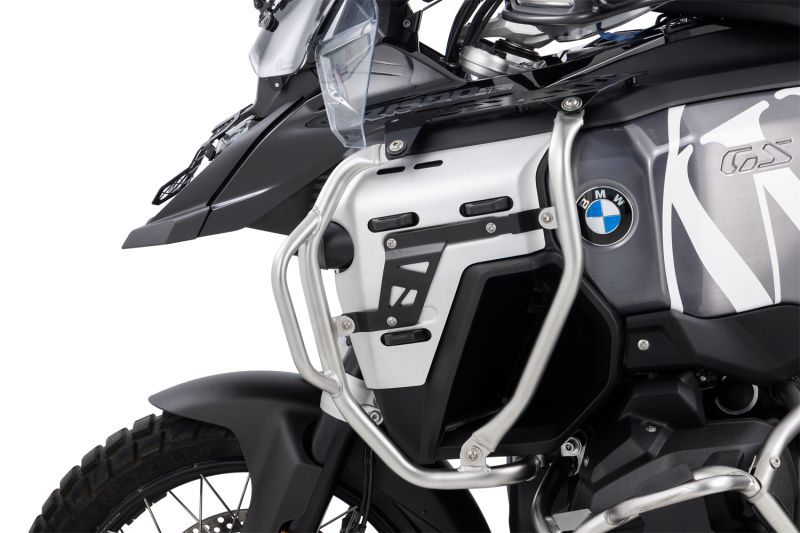

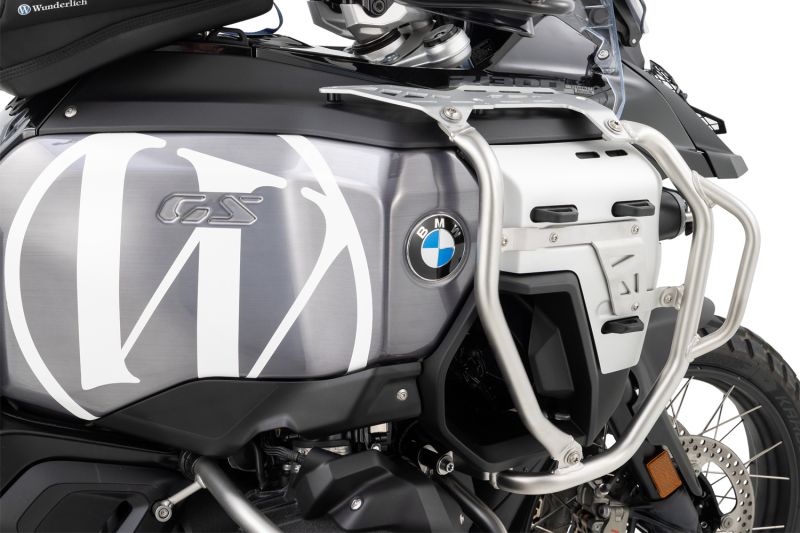

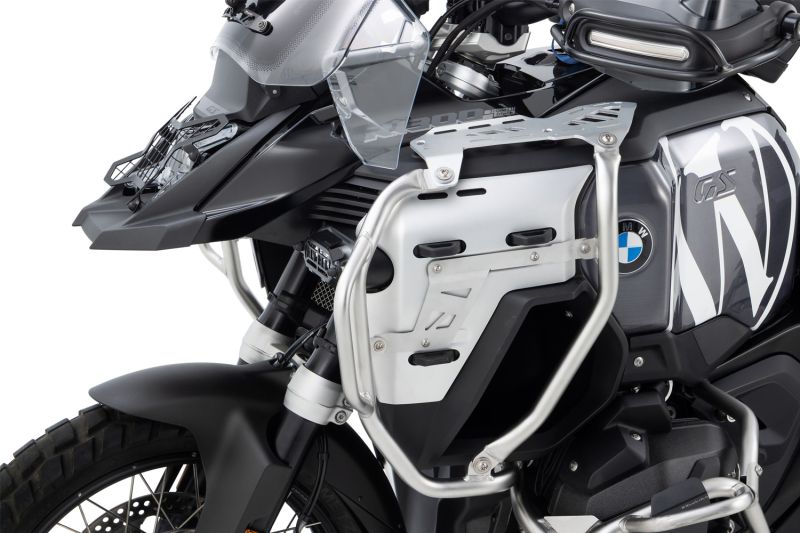

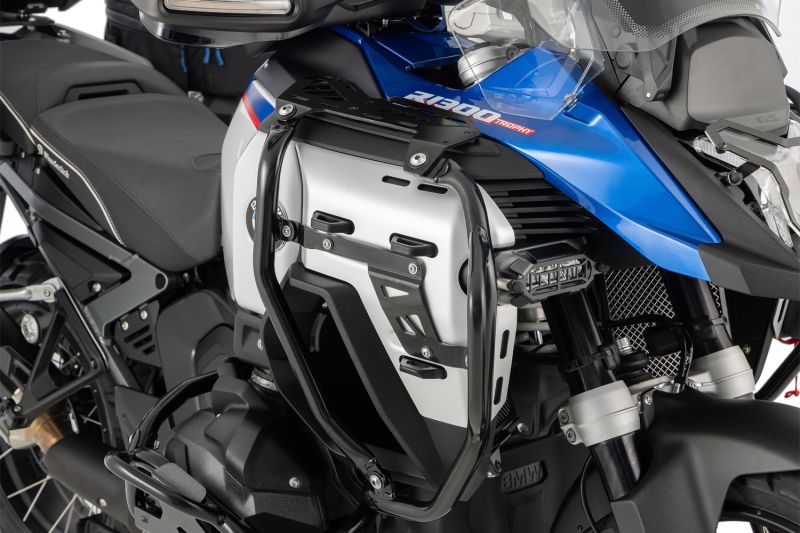

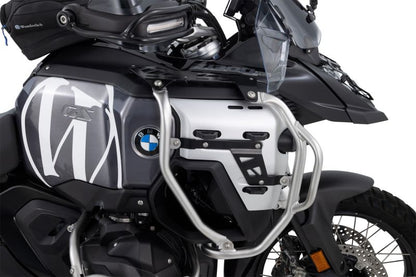

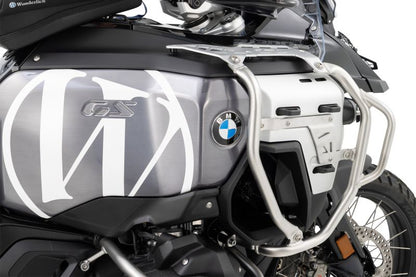

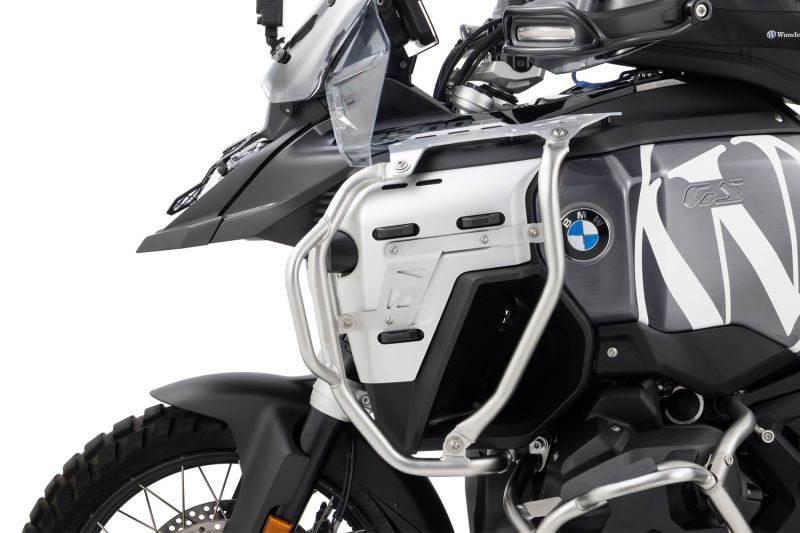

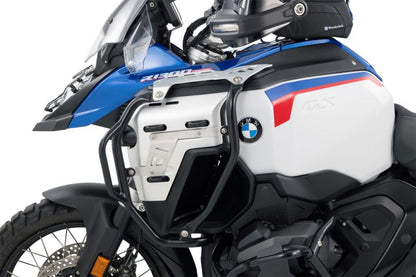

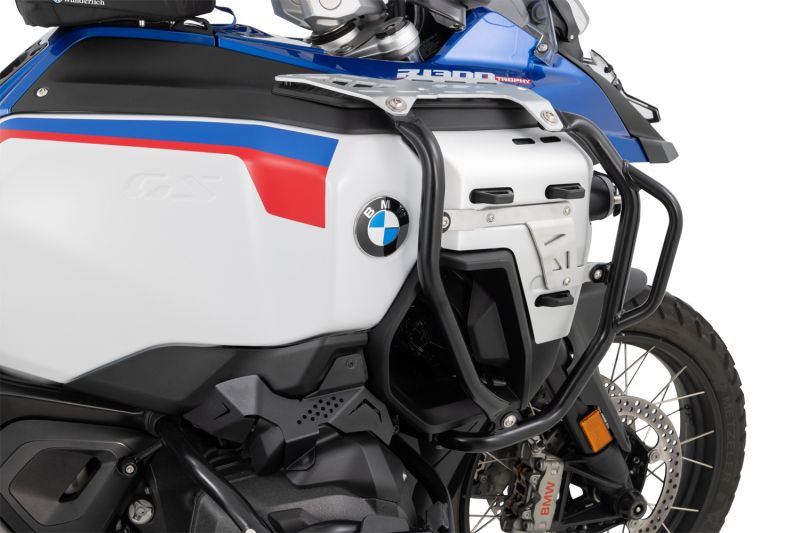

BMW R 1300 GSA Protection - Tank Guard (ULTIMATE PRO)

NO MORE PROTECTION THAN THIS!
THE ULTIMATE PRO TANK PROTECTION BAR COMBINES THE BENEFITS OF THE ULTIMATE TANK BAR WITH THOSE OF THE ULTIMATE REINFORCEMENT BAR

With integrated rollover protection
The Wunderlich ULTIMATE tank protection bar – perfect, maximum protection for the tank and tank side panels of the BMW R 1300 GS Adventure

Function and product features

• Wunderlich ULTIMATE tank protection bars are uncompromisingly designed for protection during adventure riding
• They offer maximum protection for the exposed water radiators, tank side panels, front end including auxiliary lights, and to a limited extent, the tank side bags
• The two prominent, outward-facing tube sections help prevent rollovers
• The cleverly integrated RackBase acts as a visual highlight and simultaneously serves as the upper mount for the front tank protection bar and rear reinforcement strut – it also functions as a storage platform or compact rack with integrated lash points
• The structure is designed to evenly distribute external forces and moments to appropriate mounting points on both sides, reducing peak stress and torsion
• An additional mounting point is integrated into the tank side panel
• The rigid tube structure and use of selected materials ensure maximum protection performance
• The smart all-round protection concept improves passive safety
• Compatible in combination with:
  • Original engine protection bars
  • Wunderlich ULTIMATE and ULTIMATE PRO engine protection bars
  • Original BMW cylinder head protection
• Perfectly integrated, model-specific design – bar routing precisely follows the contour of the front section
• Perfect fit
• Simple Plug & Play installation: mounts easily to existing attachment points, detailed instructions included

Note on compatibility with engine protection bars

• Compatible with original BMW engine bars
• Compatible with our engine bars using connection kit #13212-000 (please order separately)
  • ULTIMATE PRO (#13200-00x)
  • ULTIMATE (#13201-00x)

THE WUNDERLICH ULTIMATE REINFORCEMENT BARS COMPLEMENT THE ULTIMATE TANK BARS AND PROVIDE SEAMLESSLY INTEGRATED EXTRA PROTECTION FOR THE SIDES OF THE BMW R 1300 GS ADVENTURE

Function and product features

• These ULTIMATE reinforcement bars complement the ULTIMATE tank protection bars and add extra protection for the sides of the Adventure
• They act as a link between the RackBase and the lower tube extension – increasing stiffness in the frame structure
• Forces and moments are distributed across two additional mounting points per side
• The shape of the bars helps dissipate impact loads elastically
• This extra protection increases passive safety and helps reduce the risk of leg injury in the event of a fall
• Perfect fit
• Fully integrated design
• Quick and easy to install

Technical data

• Materials
  • Protection bars:
    • Precision stainless steel tubing with high tensile strength and elongation at break, crafted with care. Tubes are formed on CNC bending machines and cleanly welded. The stainless finish is bead-blasted and electropolished.
  • RackBase:
    Made from aluminium, finely finished
    • Aluminium colour – clear anodised
  • Side mounts:
    Made from aluminium, finely finished
    • Aluminium colour – clear anodised
• Dimensions
  • Tubing diameter: 25 mm

Your Wunderlich advantages

• Wunderlich premium product
• Small-batch production. Handmade
• Wunderlich design: functional and integrated

ULTIMATE TANK PROTECTION BARS ARE UNCOMPROMISINGLY DESIGNED FOR ADVENTURE RIDING PROTECTION

World-travelled adventure riders know it well: there are days when the bike tips over more than once due to terrain that’s far removed from the well-maintained roads of civilised Europe. Sometimes it’s simply the physical toll, extreme heat or cold, or lack of strength and stamina that makes it impossible to keep the bike upright. Out in the wilderness, reliable equipment that can handle serious stress is absolutely essential. It can make the difference between staying mobile and independent—or being stranded in danger.

Truly made for adventure riding. Made in Germany.
ULTIMATE – when it really matters.

This Wunderlich ULTIMATE tank protection bar is specially designed for adventure riding and provides reliable protection not only for the tank, but also the fairing, front end and the highly vulnerable radiator units. In combination with Wunderlich’s rollover protection, it forms a comprehensive protection concept that enhances passive safety. In case of a fall or drop, forces are distributed optimally across the robust structure and onto reinforced mounting points, reducing force peaks and torque loads. Visually, it integrates perfectly with the bike’s design and accentuates its rugged character. The tank bar system is constructed using 25 mm precision stainless steel tubing, CNC-bent and cleanly welded.

With our ULTIMATE bars, maximum protection performance and high-end design go hand in hand. The tank protection bar offers protection and refinement for your BMW of the highest order.

The ULTIMATE reinforcement bars fit like a glove and work together with the tank bars to increase passive safety
Our 25 mm precision stainless steel reinforcement bars support, strengthen and perfect the protective performance of the ULTIMATE tank bars.

ULTIMATE Pro = ULTIMATE + ULTIMATE
