BMW R 1300 R Protection - Oil Level Sensor Guard

THIS WUNDERLICH PROTECTOR FOR THE OIL LEVEL SENSOR ON BMW R 1300 R MODELS REDUCES THE RISK OF DAMAGE TO THE SENSOR AND MINIMISES POTENTIAL HARM TO THE ENGINE AND ENVIRONMENT.

Function and product features

• High-performance oil level sensor guard – can be mounted independently or as a valuable addition to the STREET engine guard (#14220-002)
• The downward-protruding oil level sensor of BMW R 1300 R models is at risk of breaking when bottoming out over curbs or ramps – especially when riding with a passenger or fully loaded
• The sensor, made of plastic, is not designed to withstand such impacts
• Damage may cause the oil level indicator to fail, potentially resulting in error messages or oil leaks, with harmful consequences for the engine and environment
• The sensitive sensor must therefore be protected against these external forces
• The protector shields the sensor by creating a protective space
• Advantages:
  • Protects the sensor from damage
  • Reduces the risk of being stranded after a sensor failure
  • Prevents environmental contamination
• Compatibility:
  • Wunderlich STREET engine guard
• Mounting:

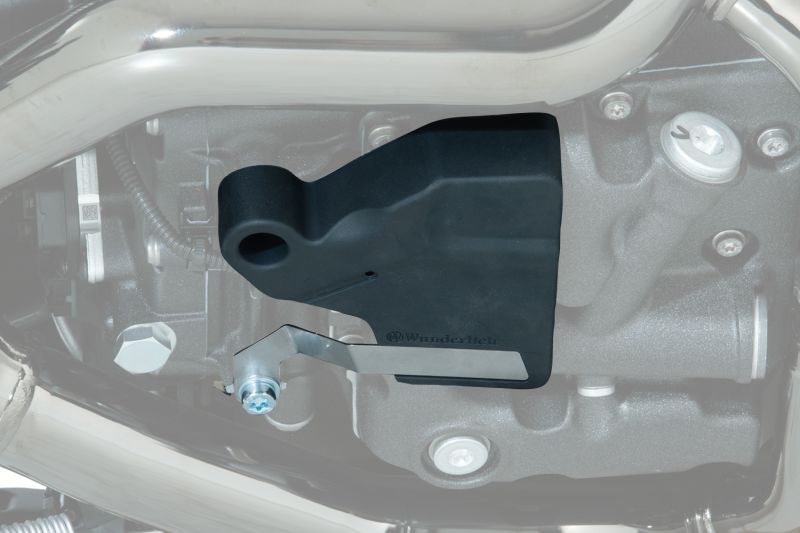

  • Uses existing mounting points and form fit
  • Direct bolting and spring clip fastening

• Sensor cable channel with outlet for draining splash or surge water during rainy rides
• The core made of robust stainless steel is covered with a vibration-dampening rubber layer
• The rubber is optimally selected for its Shore hardness for effective vibration damping

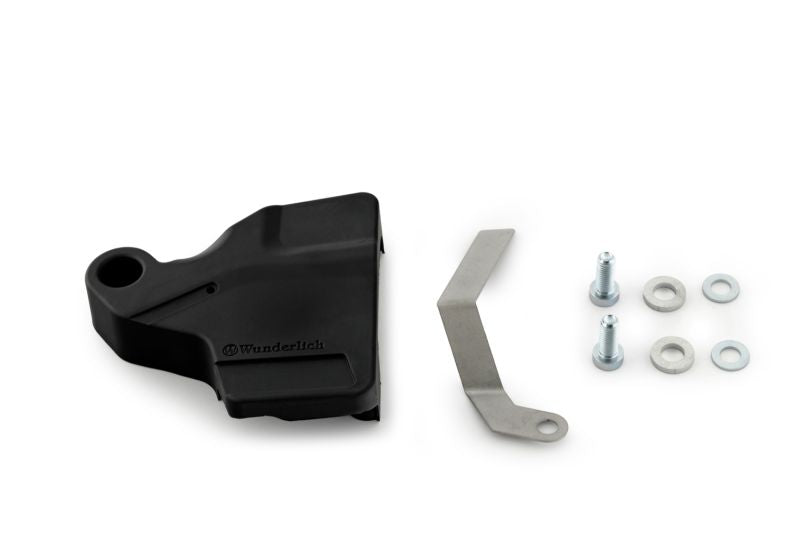

• Simple installation using the supplied fastening elements
• With Wunderlich brand logo

Note and recommendation

• For maximum protection, we recommend installing the sensor guard together with the STREET engine guard (#14220-002). Please order separately.

Technical data

• Material
  • Composite material made from metal and EPDM damping rubber, carefully vulcanised to the stainless steel plate – heat resistant

Your Wunderlich advantages

• Wunderlich product. Functionally integrated.
• Sustainable product
• Utility model protected

Invisible but indispensable

THE SENSOR GUARD ISOLATES AND ABSORBS EXTERNAL FORCES

The oil level sensor on BMW R models protrudes downward from the oil sump and is at risk of breaking when bottoming out on curbs or ramps, particularly with a passenger or full load.

This plastic sensor cannot withstand such forces and may be damaged, including its wiring. Damage may cause error messages or oil leakage, potentially harming the engine and environment.

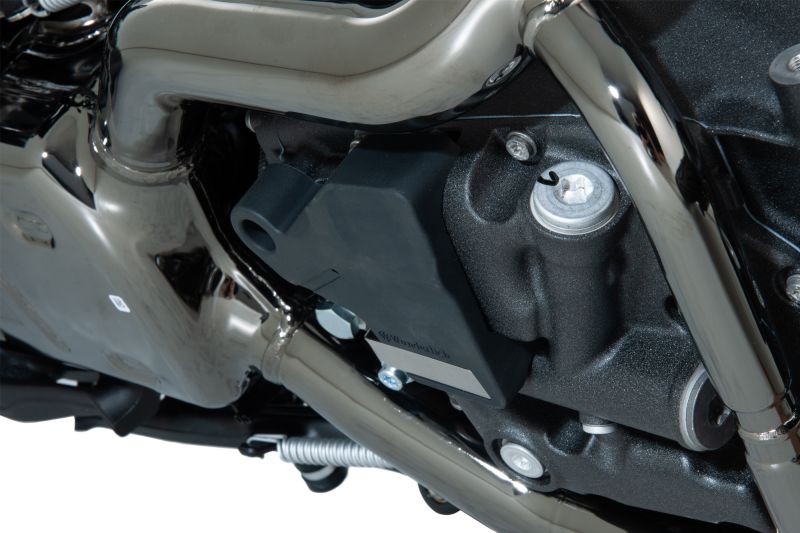

Our sensor guard creates a protective enclosure that shields the sensor from these external forces. The advantages: damage prevention and reduced risk of breakdowns due to sensor failure.

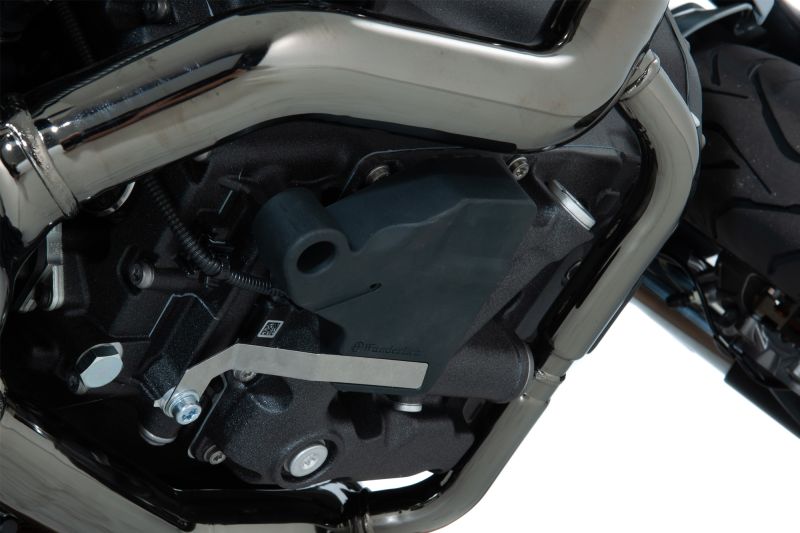

The stainless steel core is covered with vibration-absorbing rubber, vulcanised under heat and pressure for a durable bond. A channel guides the sensor cable and allows water drainage.

The sensor protector is a useful complement to the STREET engine guard (#14220-002) but can also be installed independently.

Our sensor protector for BMW R 1300 R models thus reduces the risk of sensor damage and the chance of serious harm to engine and environment due to leaking oil. Protected by utility model.
