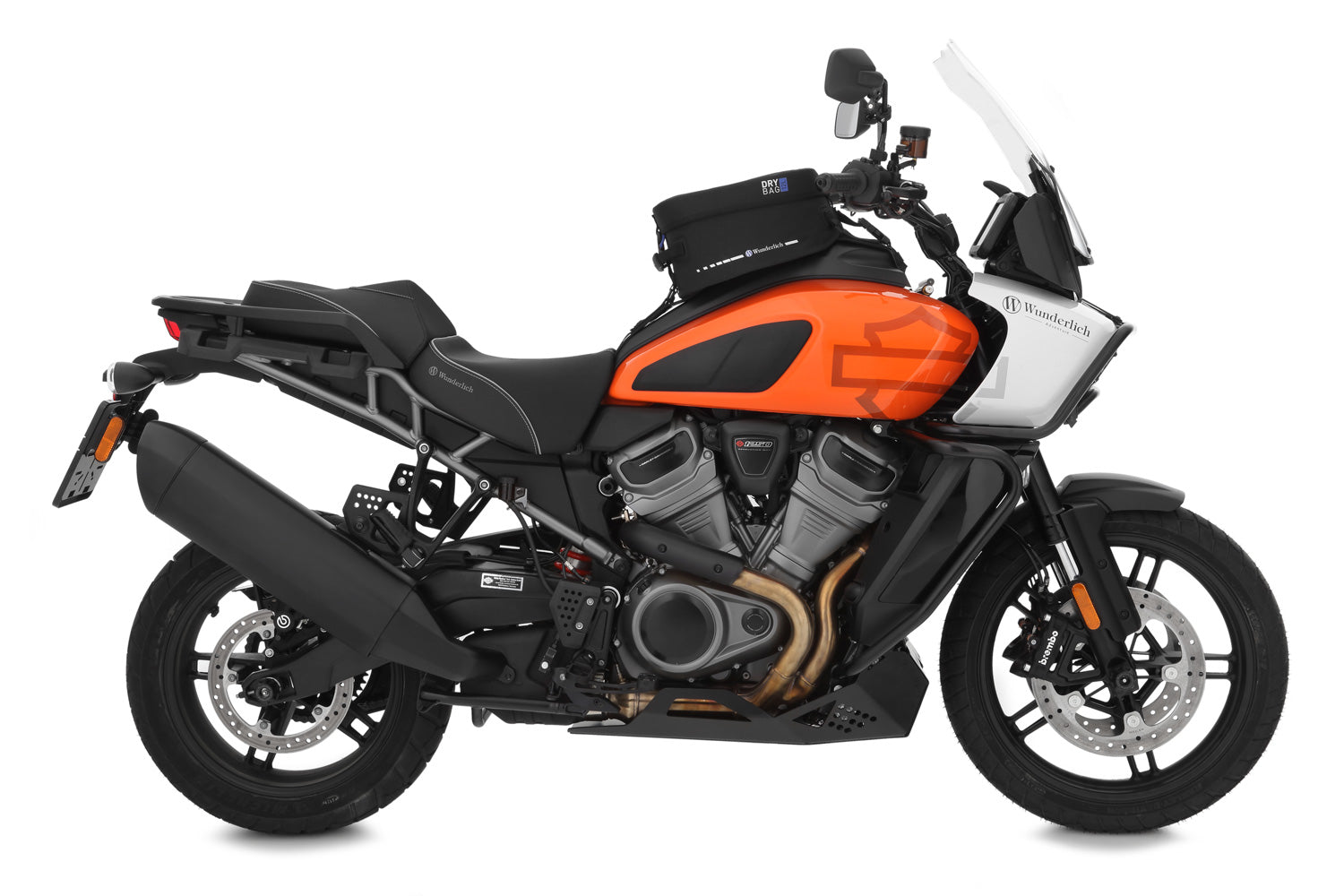

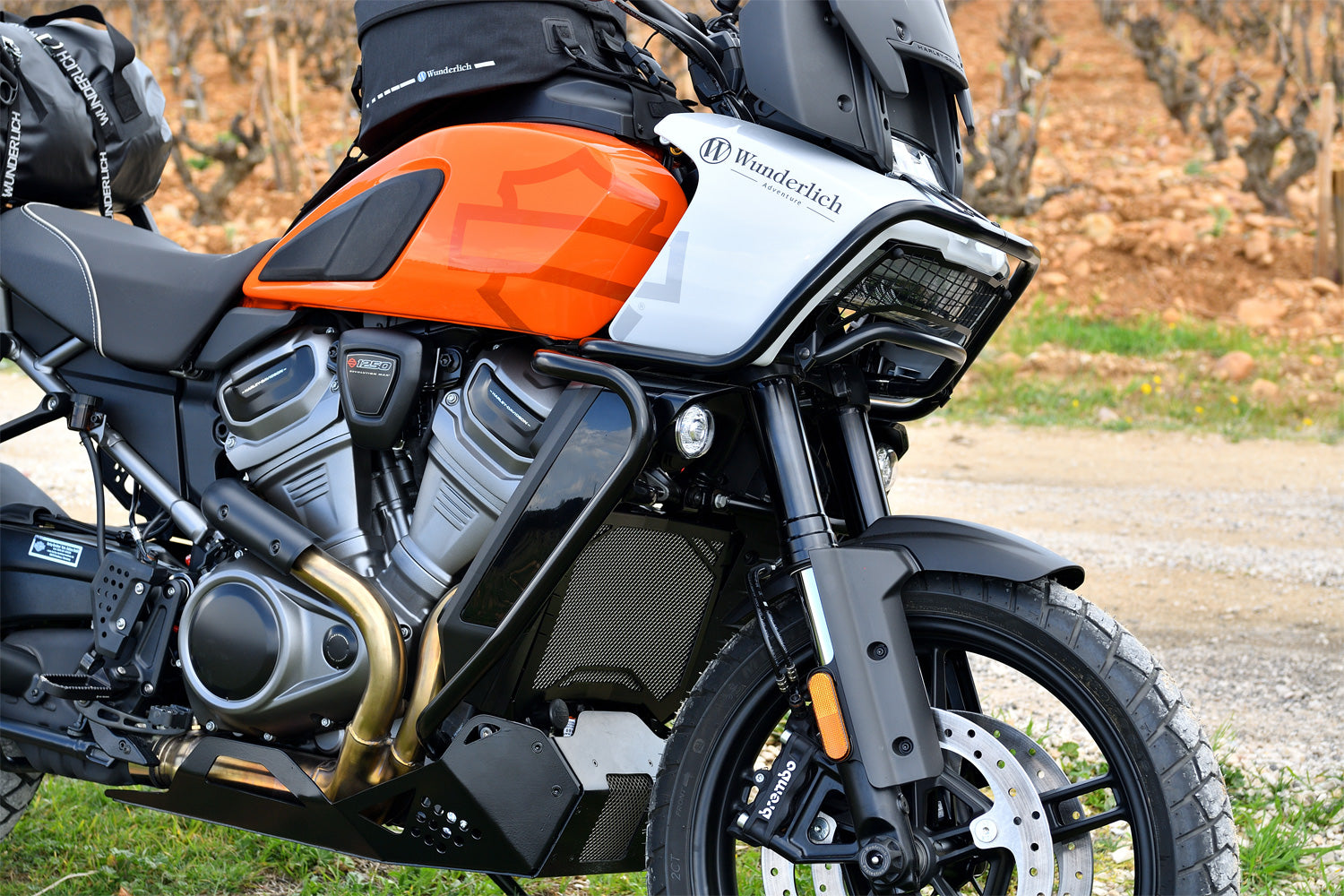

HD PAN America Protection - EXTREME Engine Bar

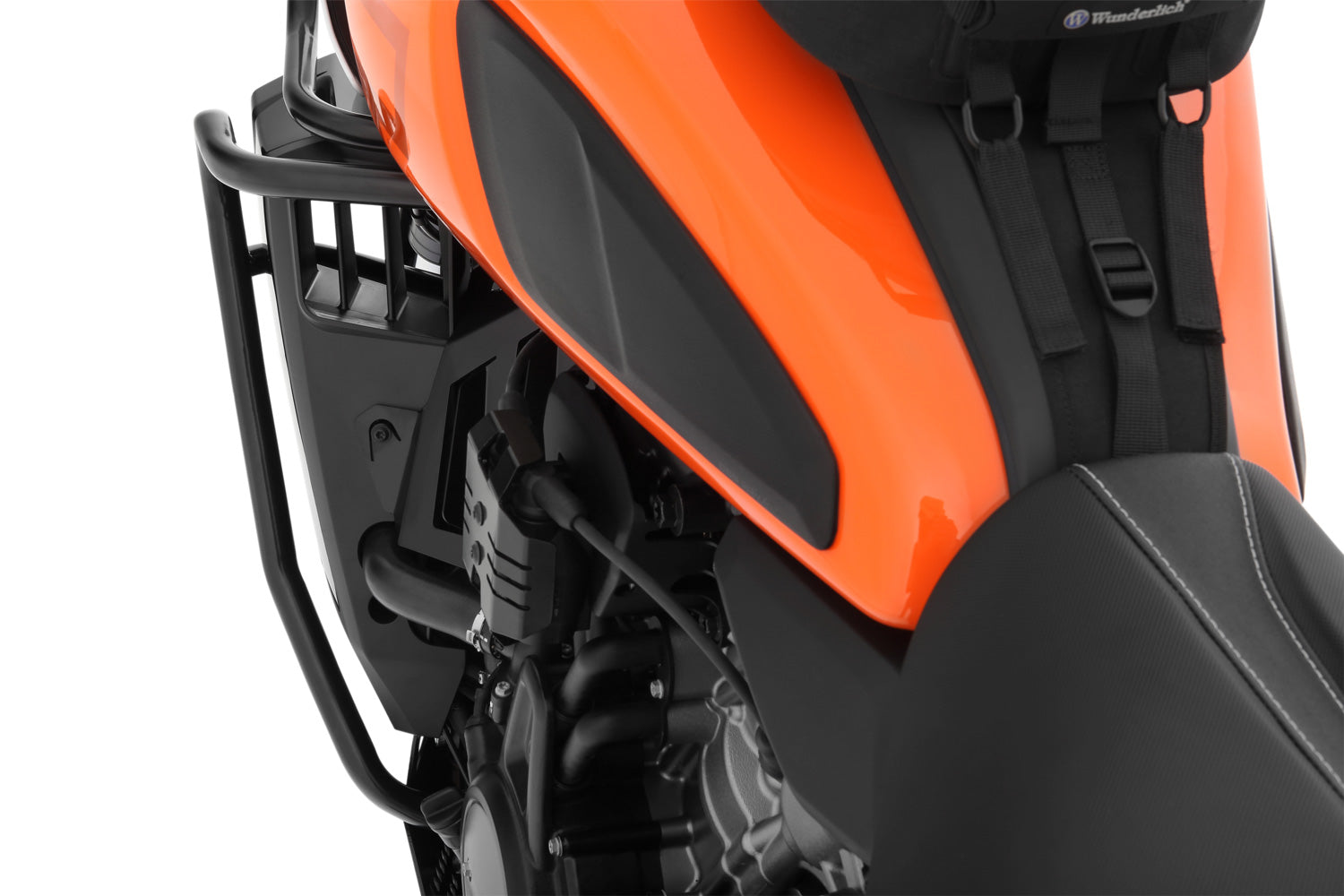

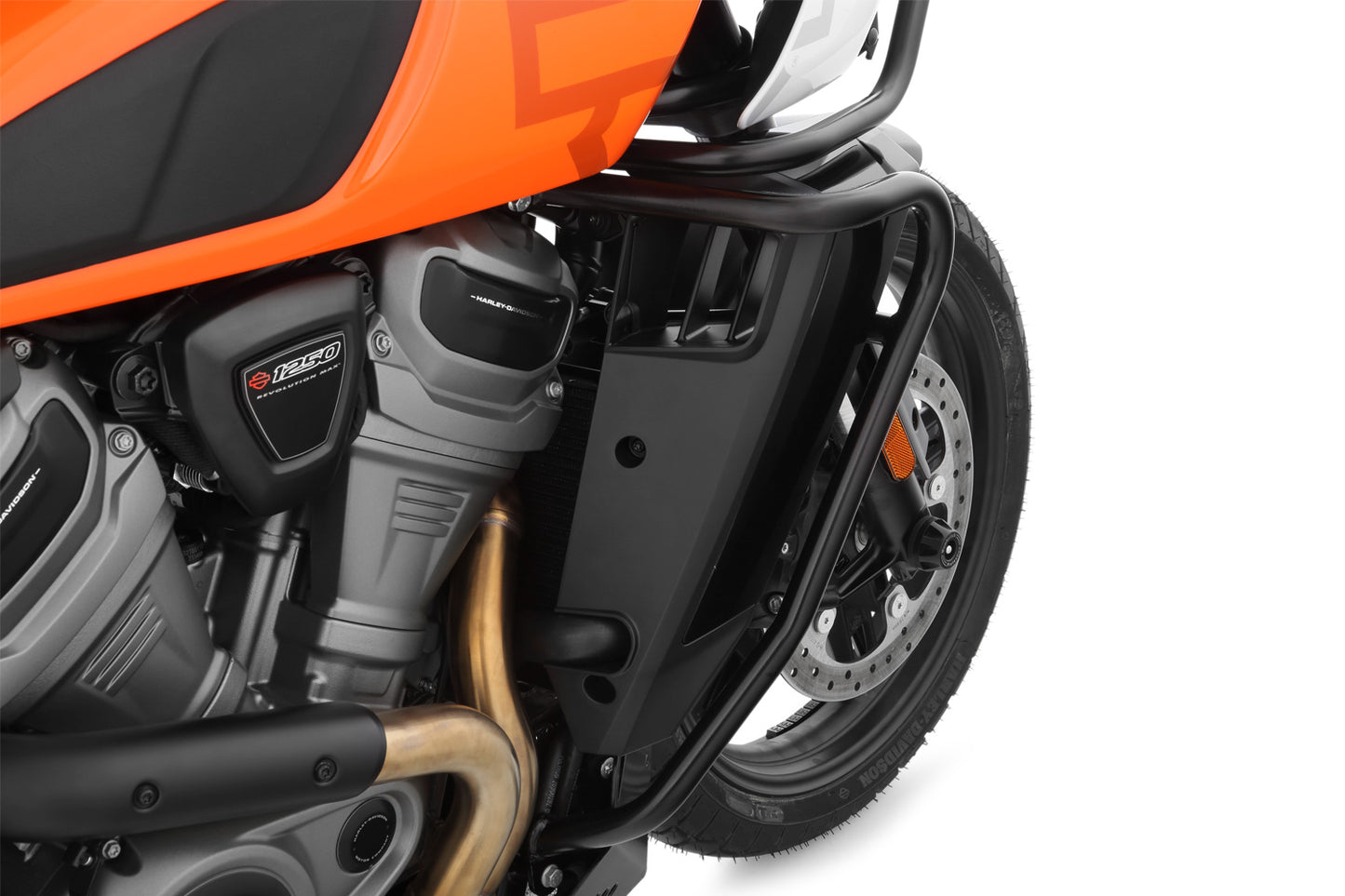

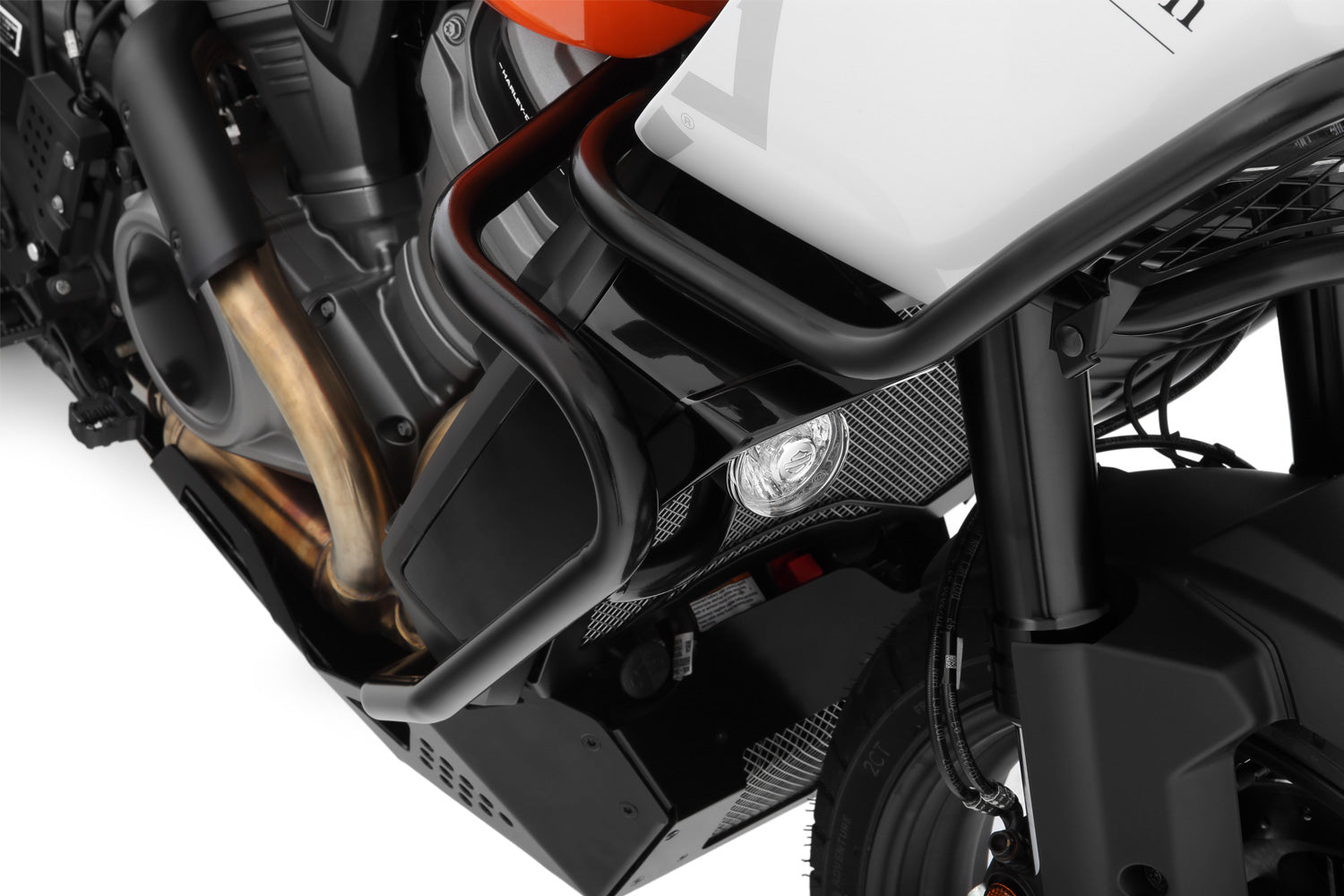

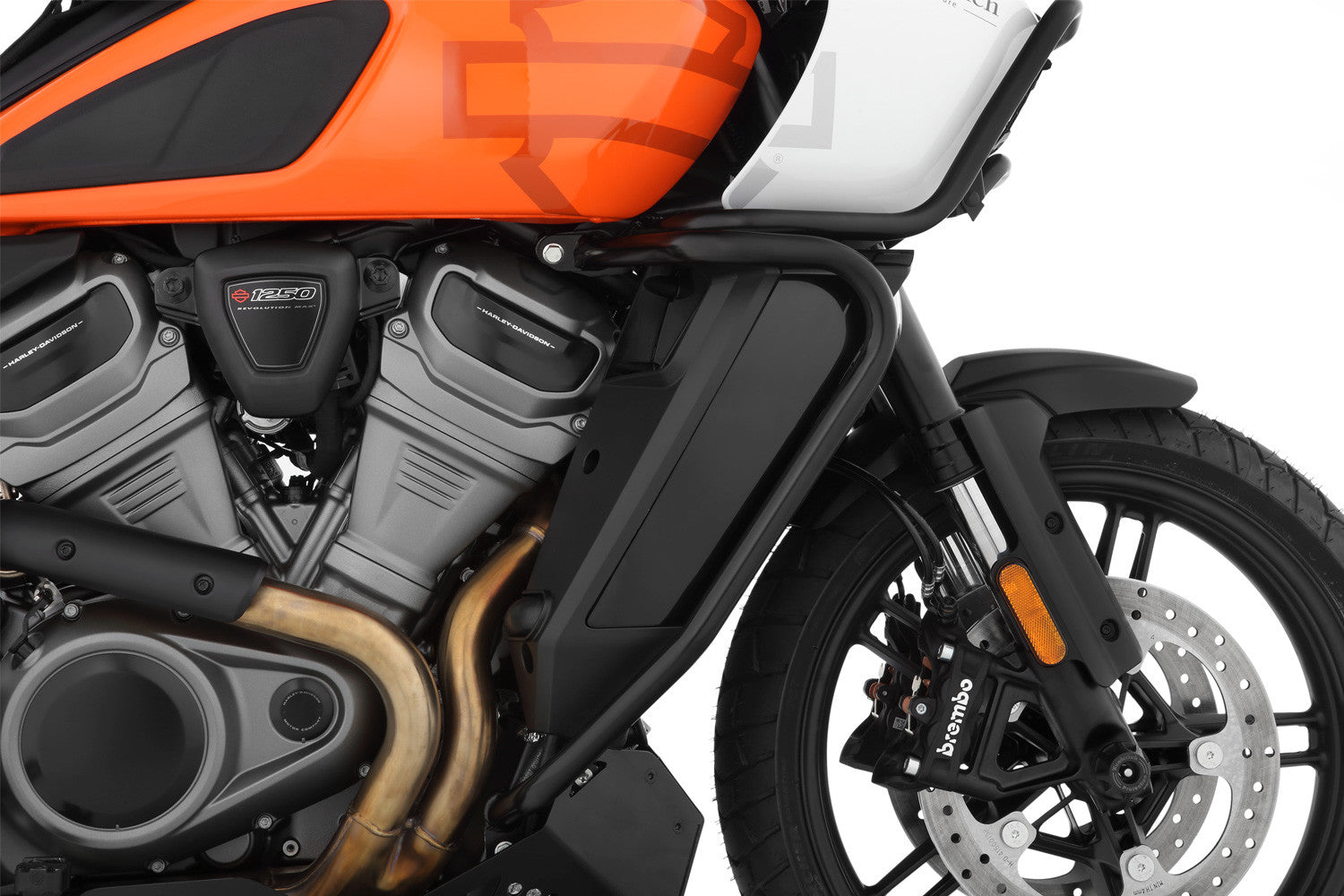

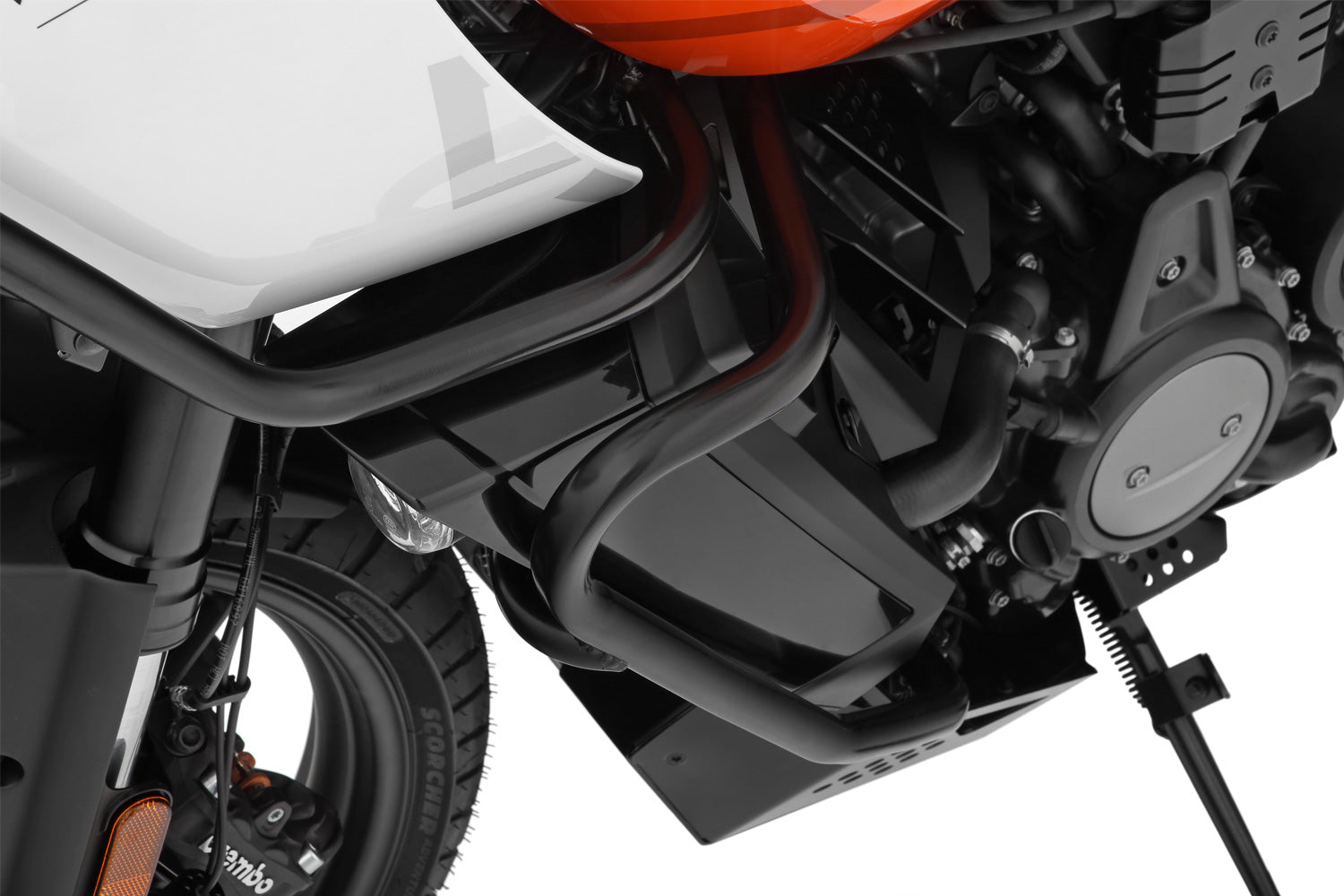

The development of our "EXTREME" engine protection bar concept brings maximum protection to the forefront. Due to the component geometry, the engine, its add-on parts as well as the radiator are perfectly and reliably protected. In addition to this comprehensive protection, we placed the utmost importance on ride height and lean angle during the development and construction. The two-part symmetric engine protection bar thus sits snugly and its specific structure also gives it additional stability and rigidity – and all while optimizing the weight of the component. The bars for left and right screw on to three selected attachment points. The torques and forces that arise during a crash or fall are thereby distributed across each of the three points on each side of the vehicle. This reduces peak loads caused by external forces. The assembly is easy.

The facts

Function

• Perfect protection for engine, aggregates and radiator
• Maximum protection
• No restriction of ride height
• Large lean angle
• Reduction of arising force/torque peaks by distributing these over each of the three attachment points on each side of the vehicle
• Maintenance work is possible without removing the bar
• Detailed yet easy-to-understand instructions
• Lighter and simpler installation thanks to the precise fit accuracy
• Delivery includes installation material

Technical Information

• Material: High-quality steel, precision formed on CNC pipe bending machines and clean welded, black powder-coated
• Dimensions
• Pipe diameter: 25 mm

Your Wunderlich benefits

• Wunderlich premium product. Small series. Hand crafted.
• Wunderlich design. Integrated and functional.
• Made in Europe
