USB dual socket

WUNDERLICH USB DOUBLE SOCKET USB/USB-C - SUPPORTS INTELLIGENT DEVICE DETECTION, MULTIPLE FAST-CHARGING PROTOCOLS AND USB STANDARDS, AND IS CAN BUS COMPATIBLE

Function and Product Features

• Plug & Play system

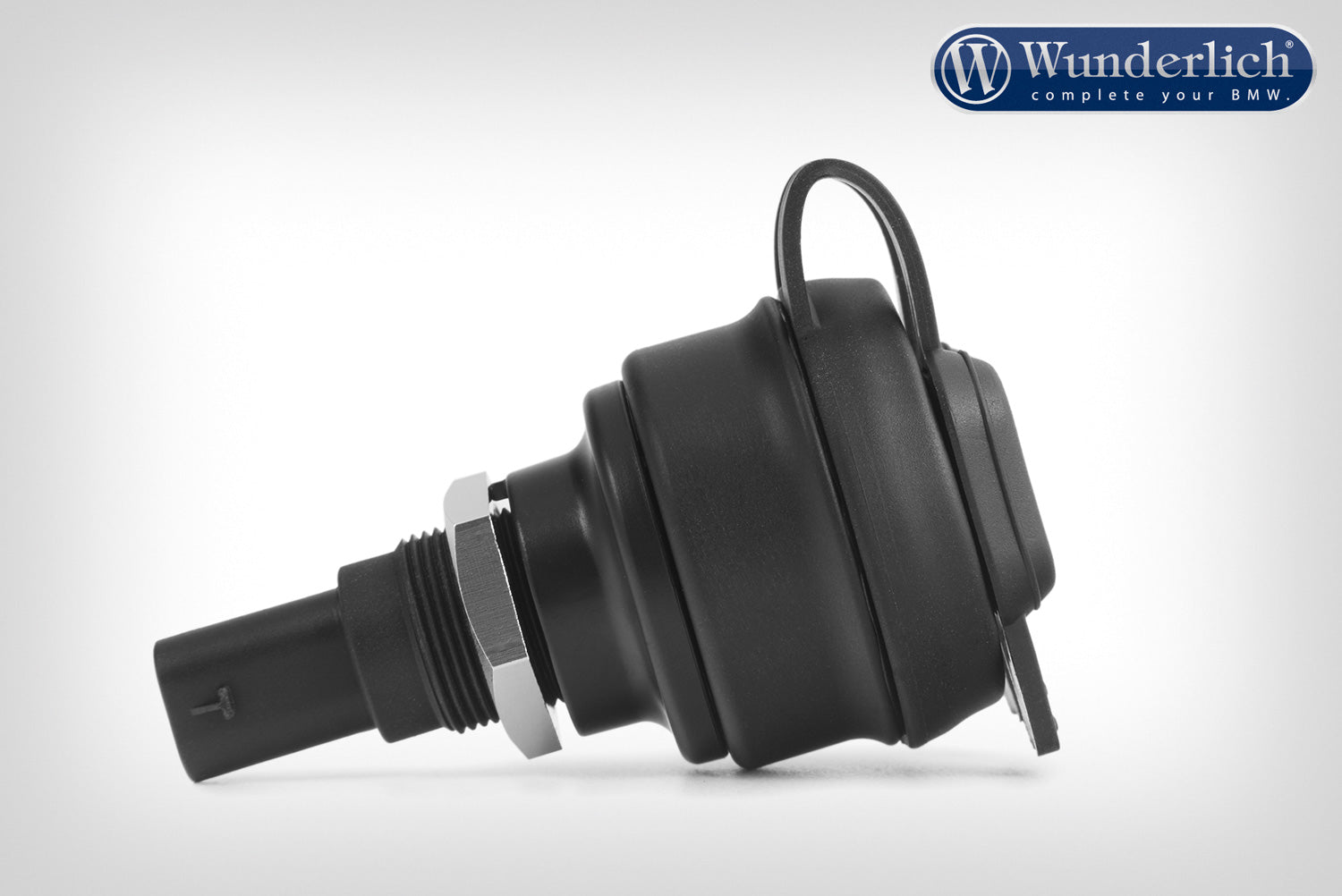

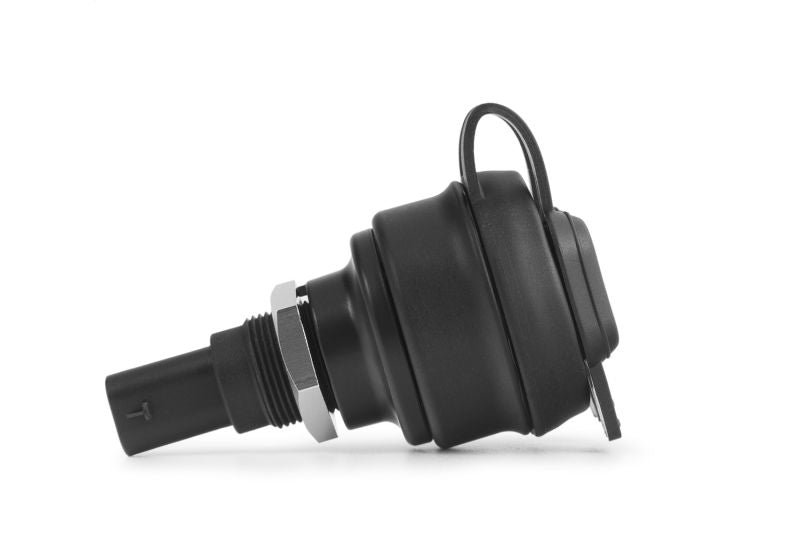

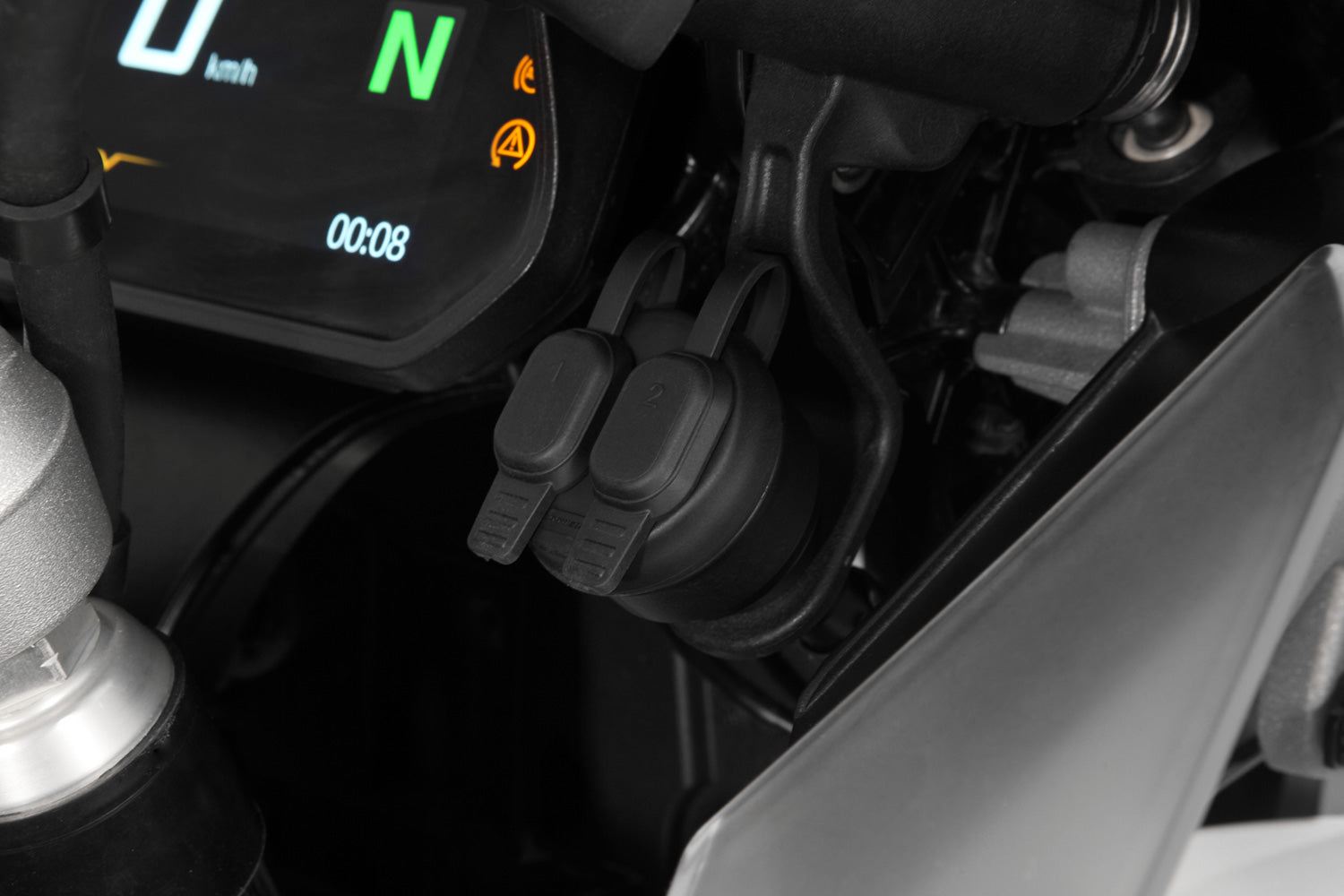

• The USB double socket with USB/USB-C connection replaces the original BMW DIN or single USB socket
• The USB double socket is suitable for connecting smartphones, tablets, cameras, satnavs, etc.
• Space-saving, as the USB double socket eliminates the need for bulky (and unsightly) DIN-USB adapters

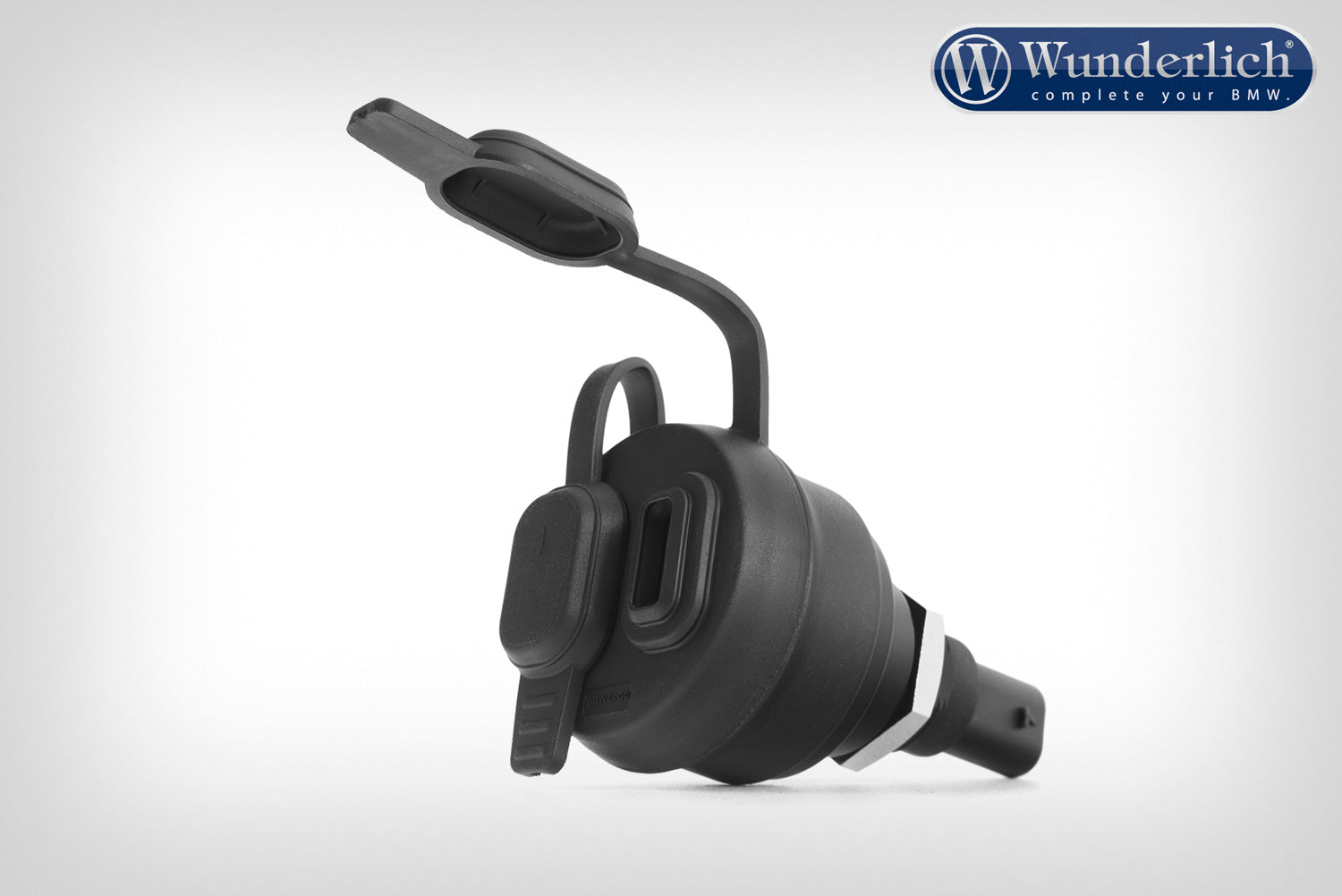

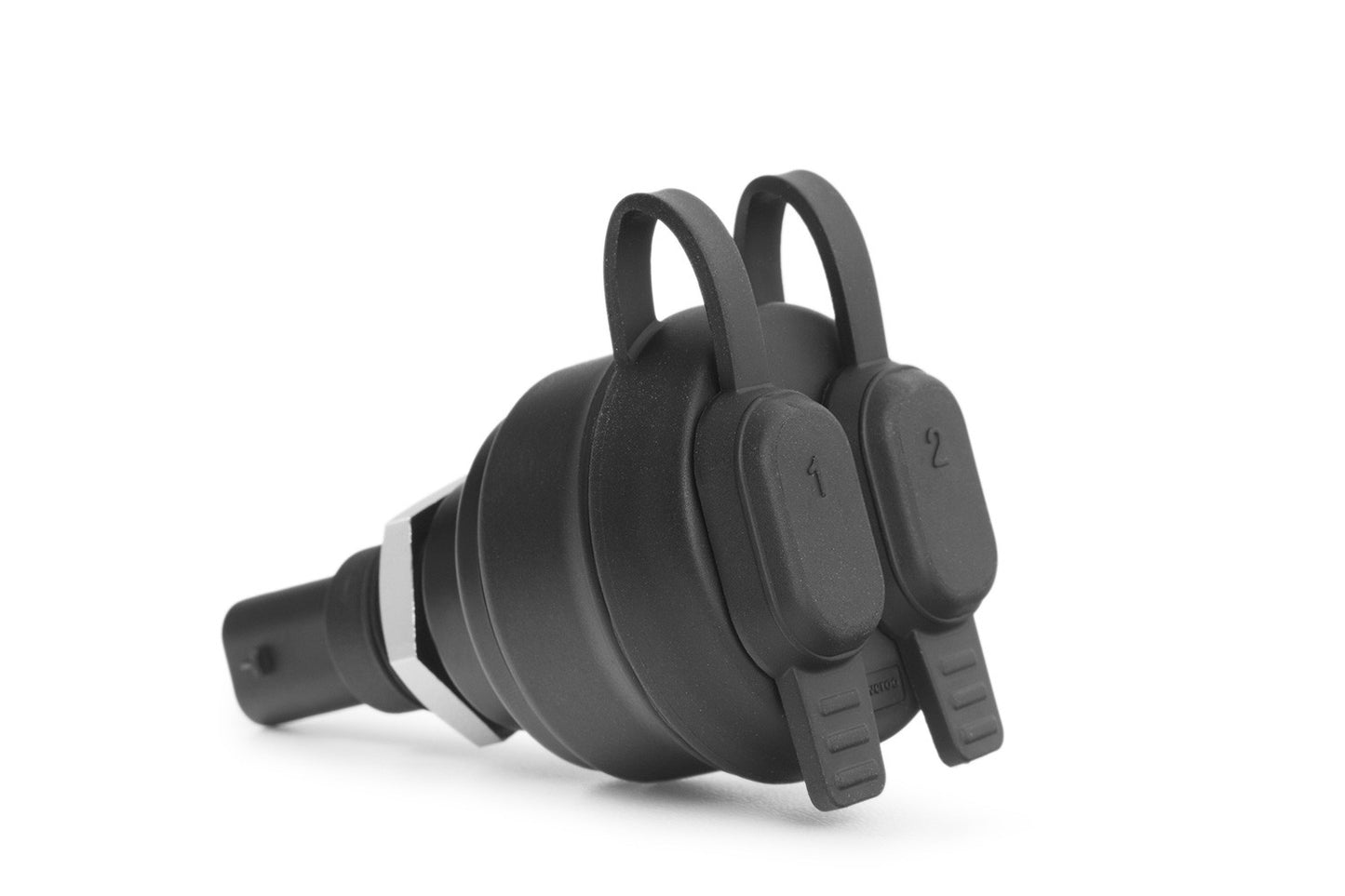

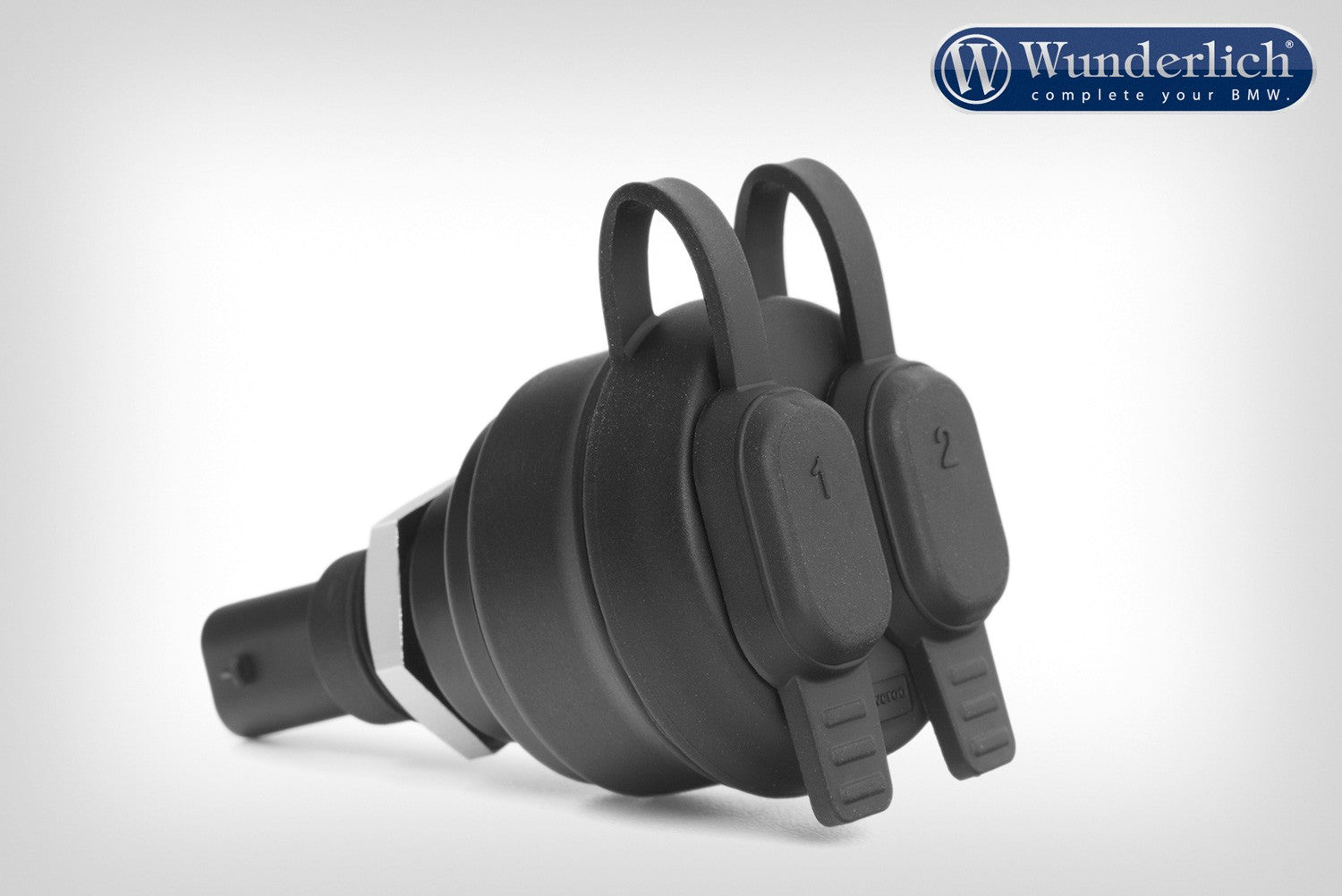

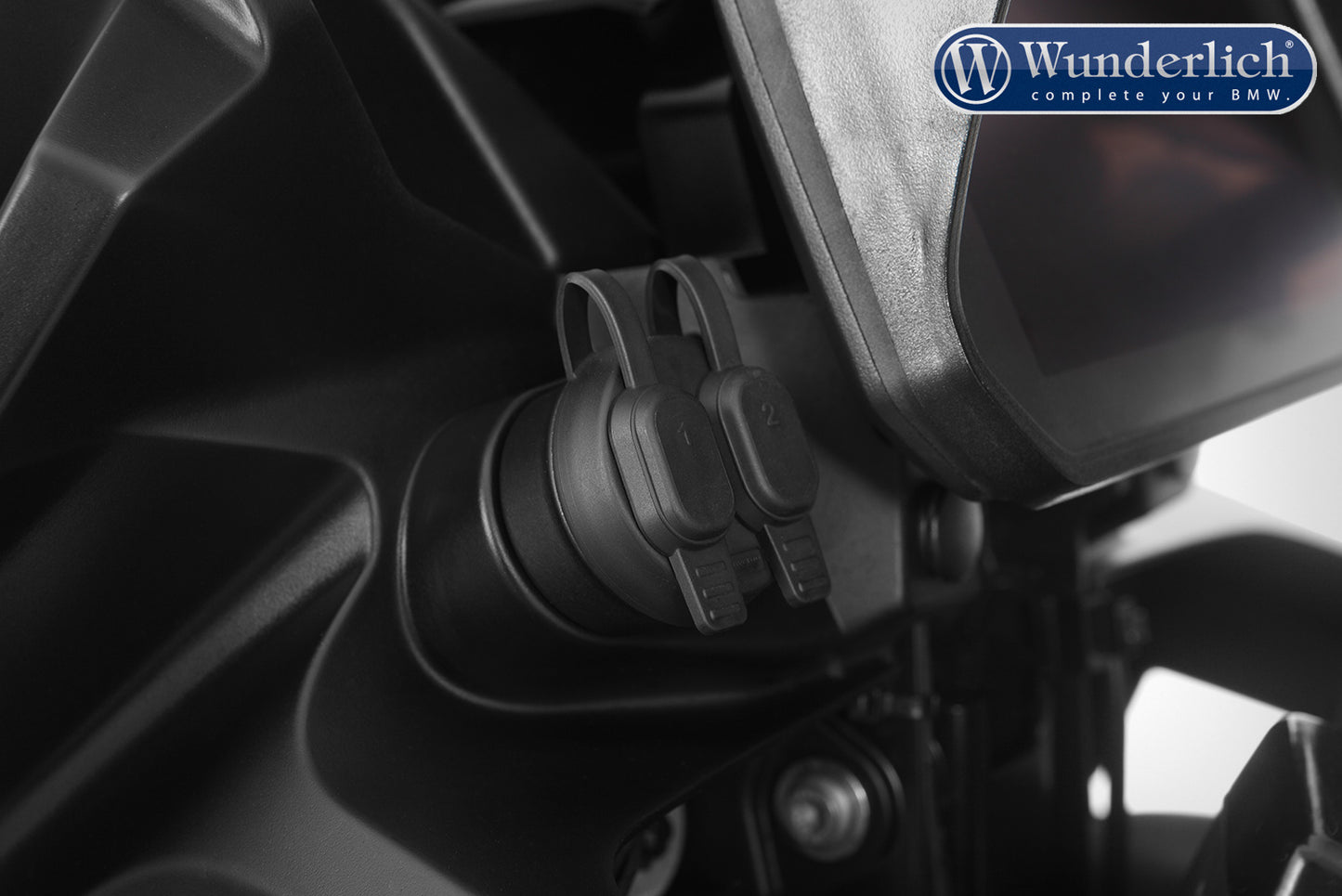

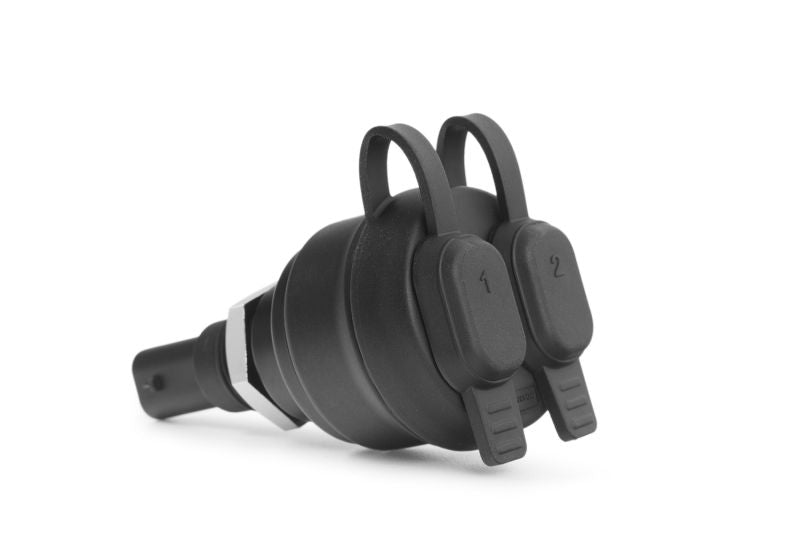

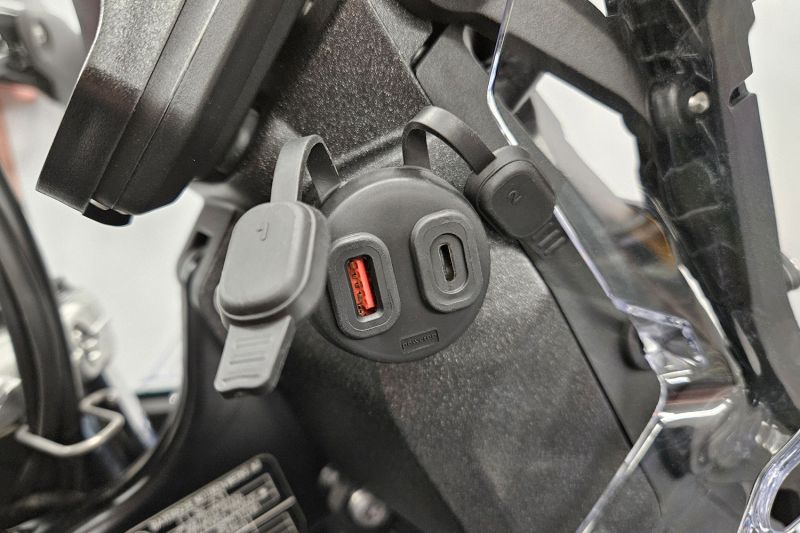

• The USB/USB-C ports of the double socket can be covered with form-fitting elastomer caps when not in use to protect against splash water and dust
• The USB double socket is CAN bus compatible
• It supports intelligent device detection
• Integrated protection against short circuit, overheating, and overvoltage
• Easy and quick installation

Technical Data

• Input: 8 to 30 volts DC

Supports the following fast-charging protocols

• USB-C only: USB PD3.0/PD2.0/PPS for Apple fast charging, an Apple Lightning-to-USB-C cable must be used
• Both ports: Qualcomm Quick Charge QC4+/QC4/QC3.0/QC2.0, Samsung AFC, Huawei FCP and SCP, MediaTek PE2.0/PE1.1, Spreadtrum SFCP, OPPO VOOC
• Other: BC 1.2, Apple 2.4A

Power Output

• USB-C: 5 V⎓3 A / 9 V⎓3 A / 12 V⎓3 A (36 W max.)
• USB-A: 4.5 V⎓5 A / 5V⎓4.5A / 5 V⎓3 A / 9 V⎓3 A / 12 V⎓3 A (36 W max.)
• USB-C + USB-A: 5 V⎓4.8A (24 W max.)

Protection

• Water-resistant

SPACE-SAVING HIGHLIGHT: OUR SOLUTION OFFERS TWO FULLY-FLEDGED USB PORTS INSTEAD OF A DIN OR SINGLE USB SOCKET – PLUS, OUR USB DOUBLE SOCKET ELIMINATES THE NEED FOR BULKY DIN-USB ADAPTERS

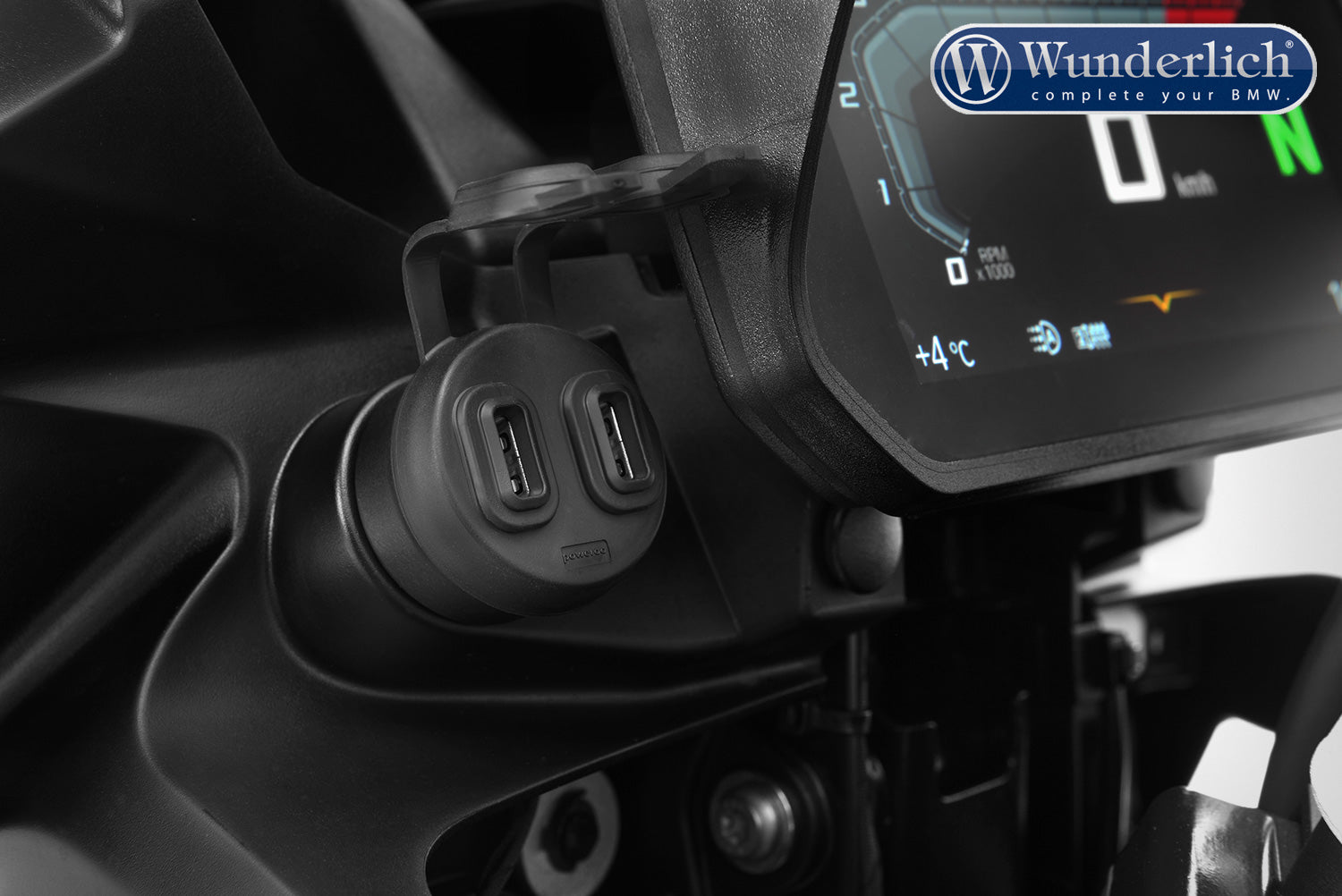

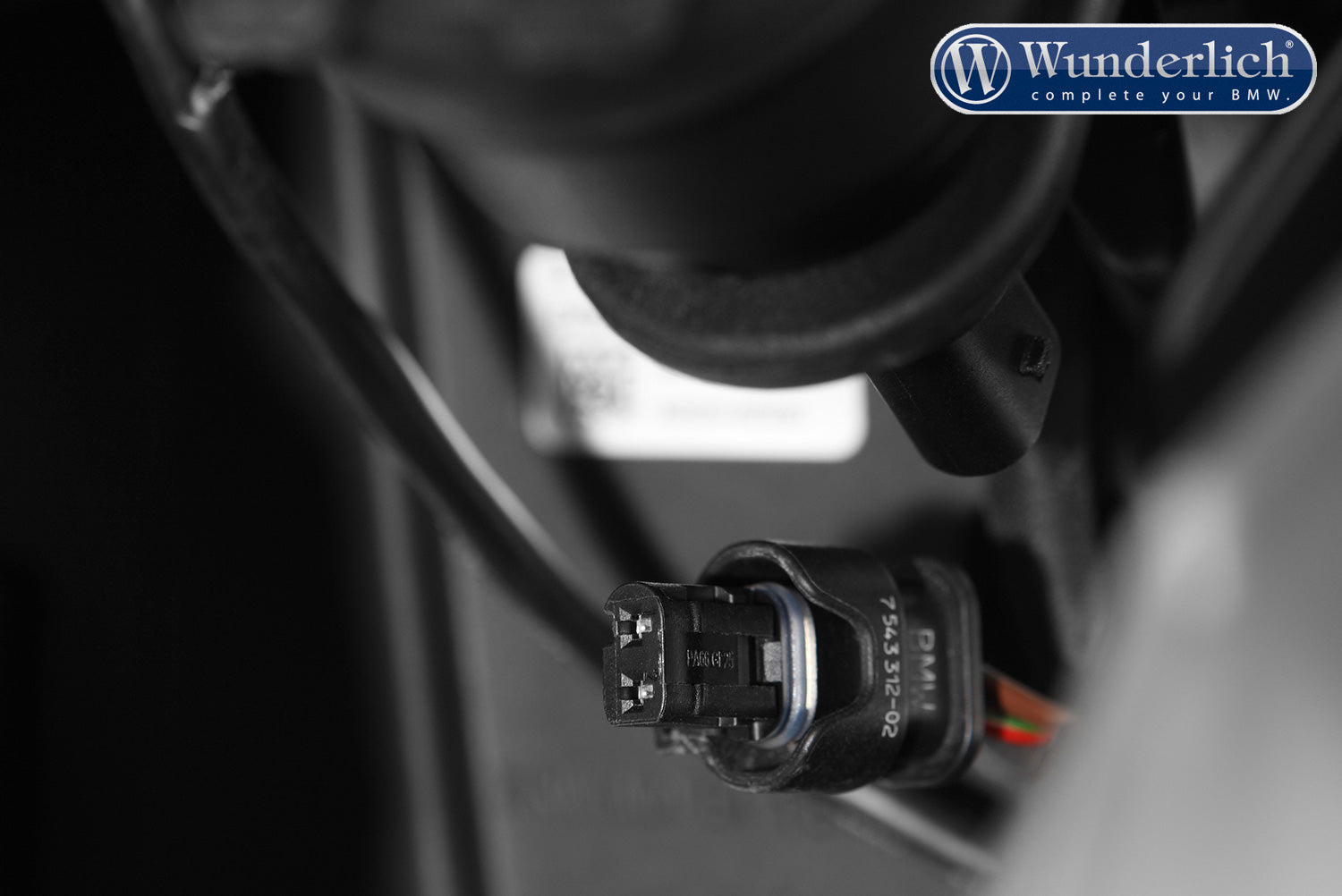

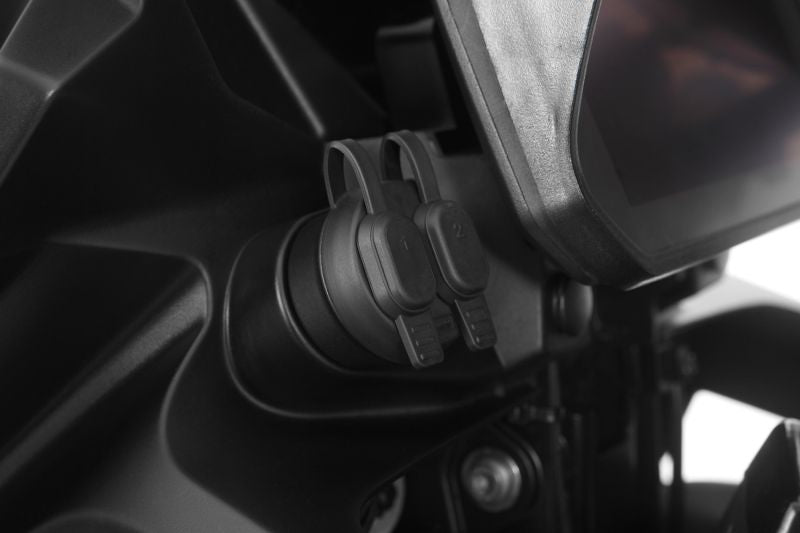

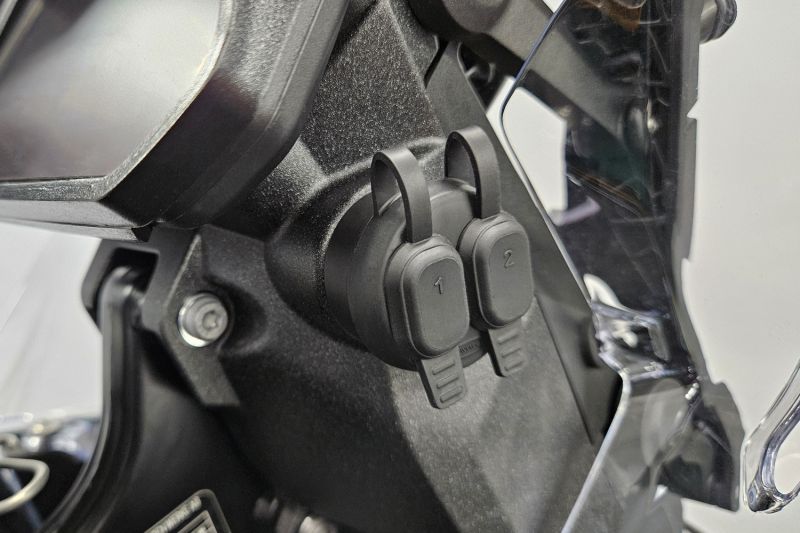

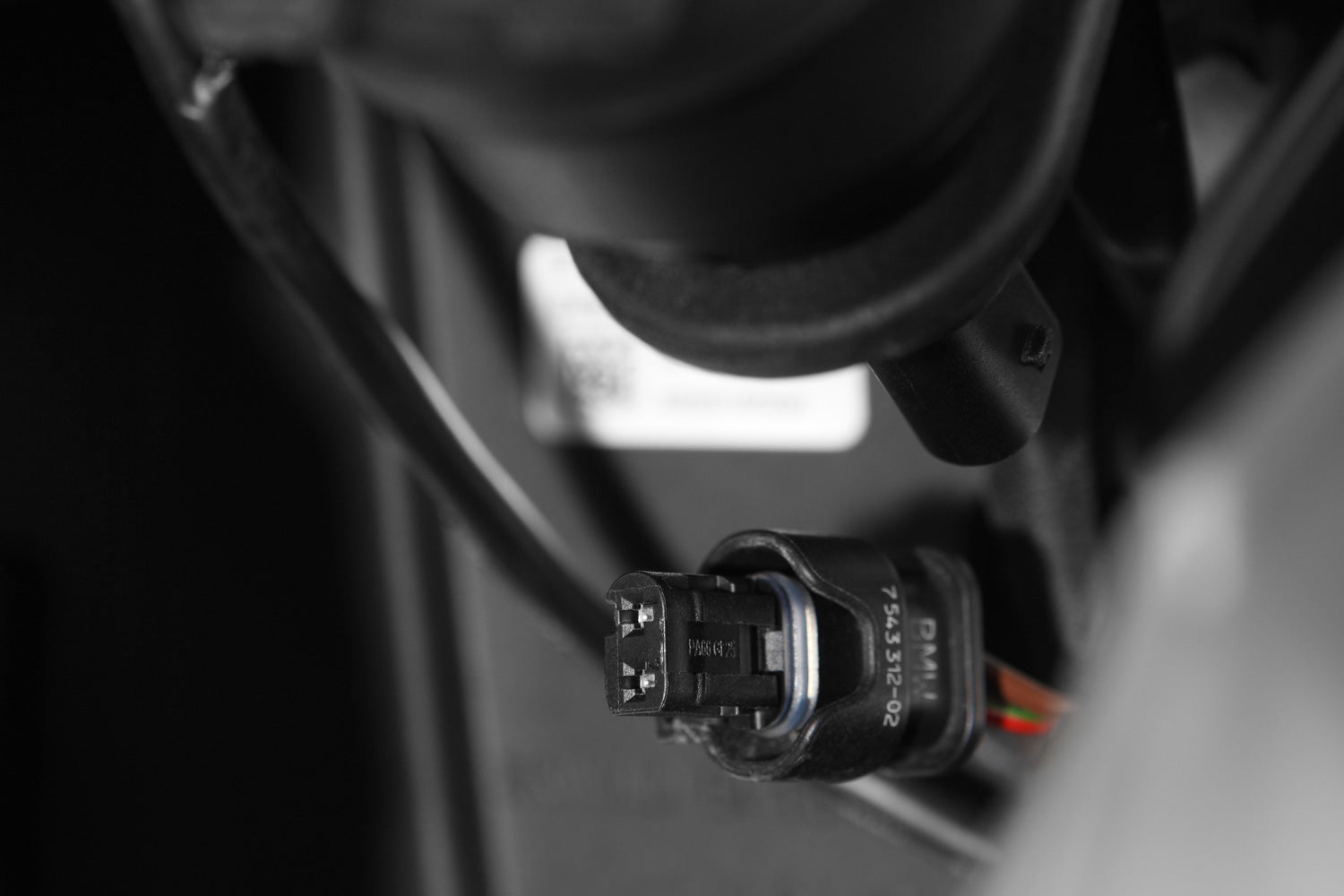

The USB double socket is designed to replace the original BMW DIN or single USB socket, providing two easily accessible USB ports while saving space. It also puts an end to wobbly, temporary adapter solutions. Installation is carried out at the same position using the original connector. No soldering or re-routing of cables is required.

Our USB double socket supports numerous fast-charging protocols and USB standards. It is fully CAN bus compatible and supports intelligent device detection. The integrated protection feature provides protection against short circuits, overheating, and overvoltage.
