RAM® Tab-Tile™ Holder for 254mm (10") -279.4mm (11") Rugged Tablets

Name: RAM® Tab-Tile™ Holder for 254mm (10") -279.4mm (11") Rugged Tablets
Brand: Ram Mount
SKU: RAM-HOL-TABL19U
Price: 8799.0 INR
Availability: OutOfStock

M.R.P.: From Rs. 3,799.00 /-

Ram Mount

RAM-HOL-TABL19U

Out of stock

Style Locking Non-Locking

M.R.P.:

Rs. 8,799.00 /-

Inclusive of all taxes

Product Info

BEST BEFORE : TEN YEARS FROM DATE OF IMPORT / PACKAGING
COMMODITY : CASTINGS
COUNTRY OF ORIGIN:UNITED STATES OF AMERICA
WARRANTY INFO : ONE YEAR FROM DATE OF INVOICE

Sorry, it's out of stock.

But we can let you know when it's back in.

Disclaimer

While Motousher works to ensure that the product information, on the website, is accurate and correct, on occasions, the concerned manufacturers may alter or modify their products' ingredients or configurations, as the case may be. Actual product packaging and materials may contain more and/or different information than that is shown on Motousher's website. Motousher recommends that you do not solely rely on the product information available on the website and that you always read warnings, descriptions, labels and directions, printed on the product, before using or consuming a product. For any additional information about a product, please contact the concerned manufacturer or refer to their website.

Sold out

Ask a question

Fitment and compatibility

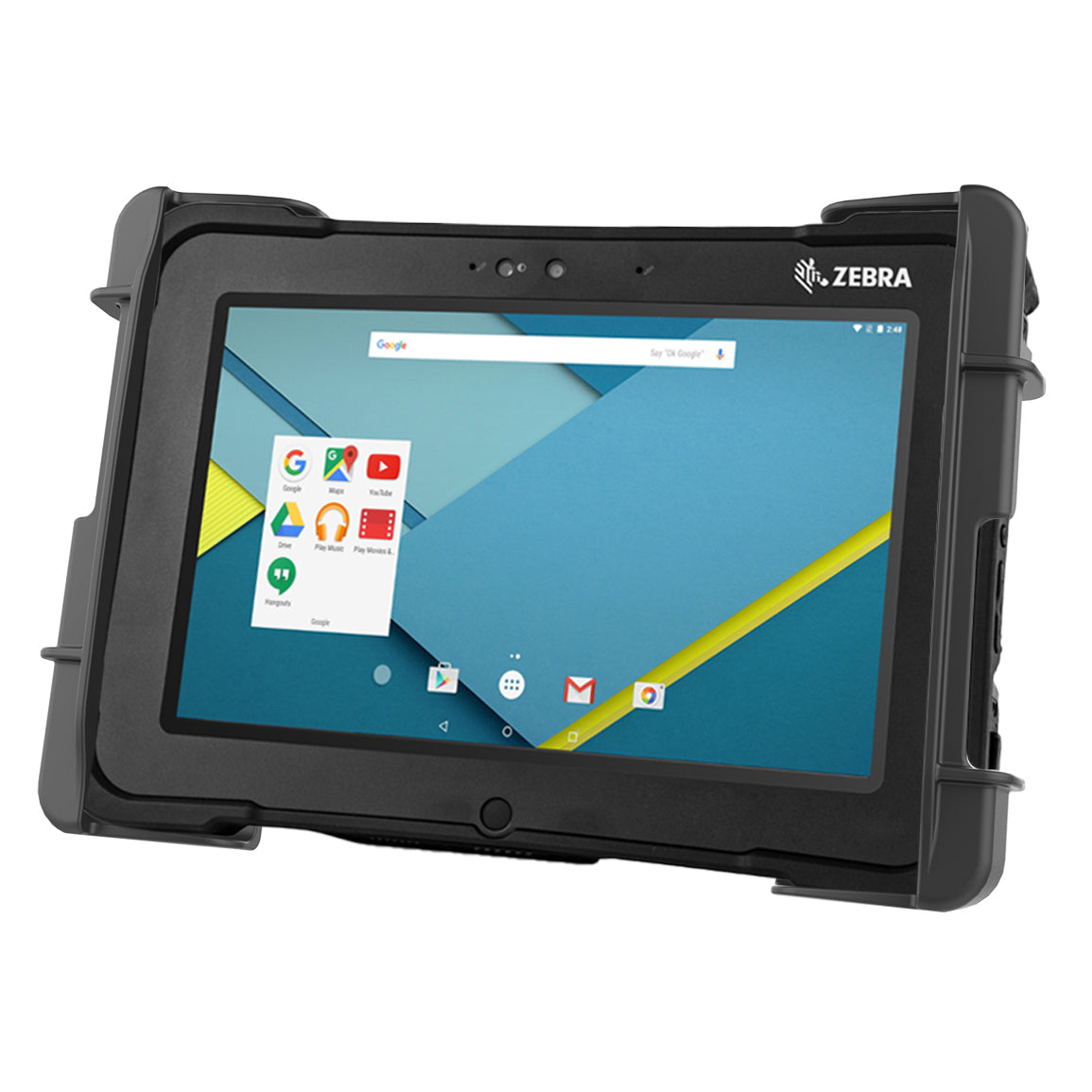

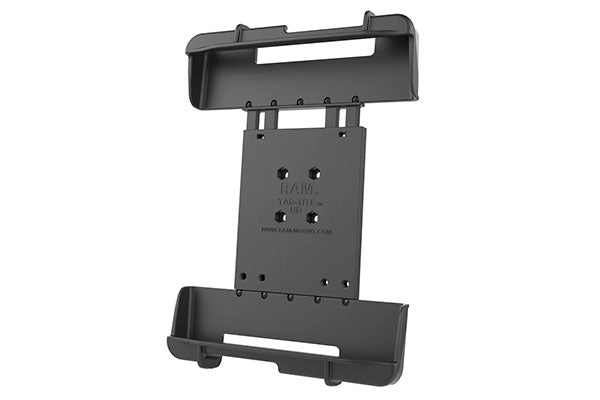

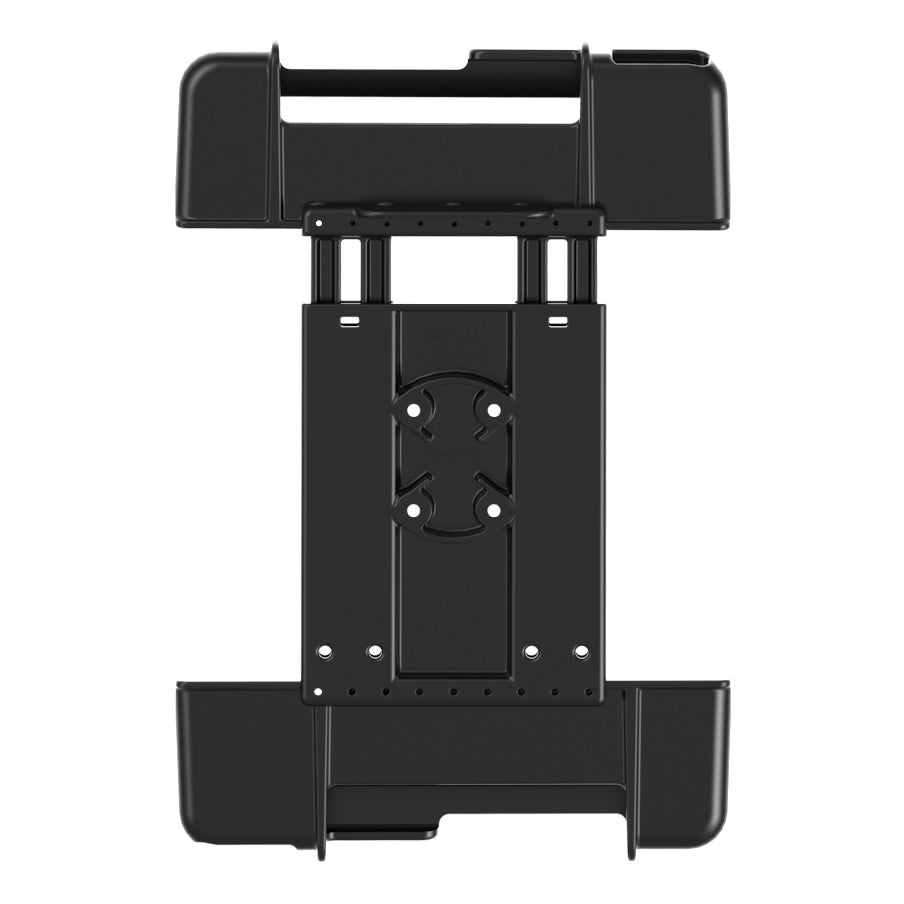

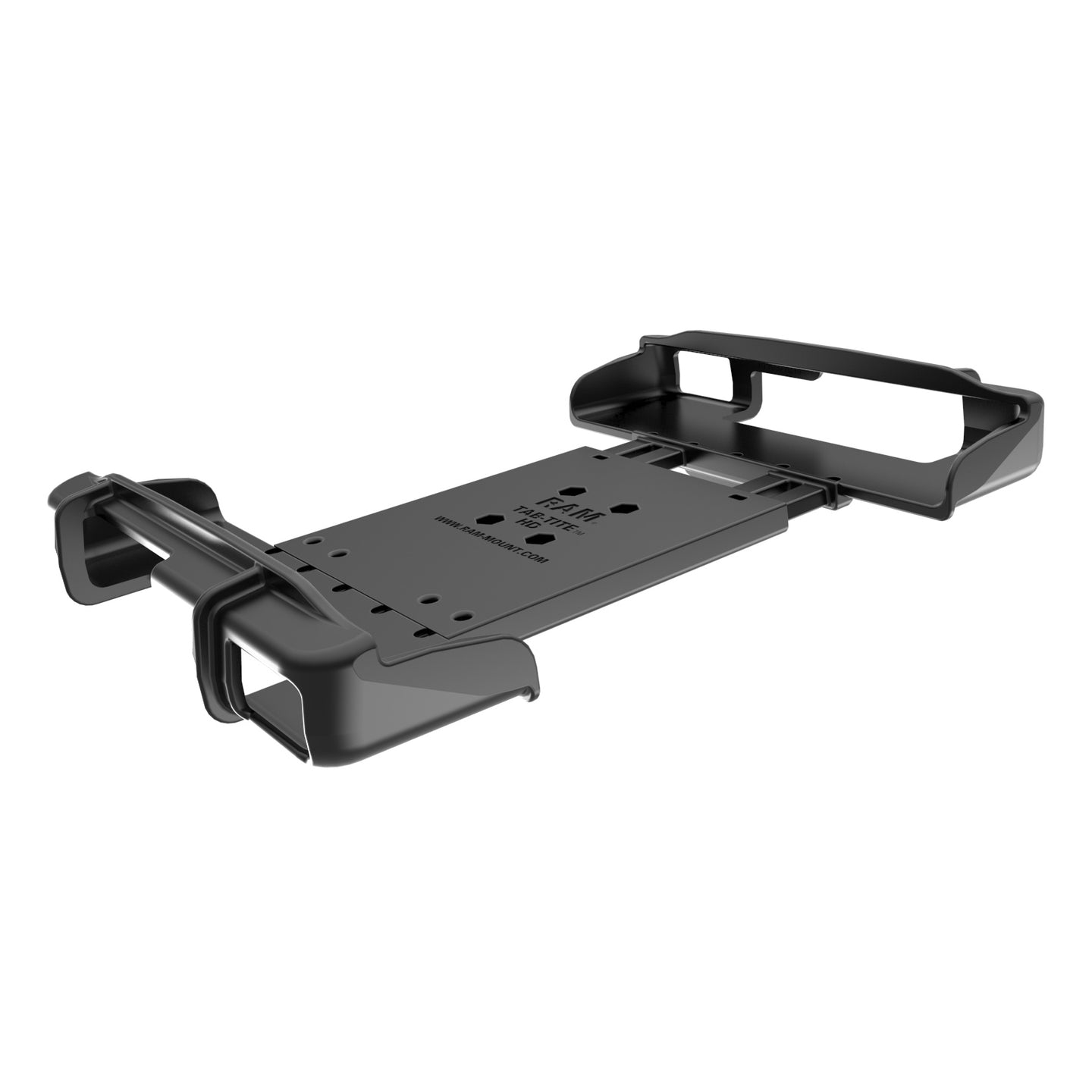

RAM® Tab-Tile™ Holder for 254mm (10") -279.4mm (11") Rugged Tablets:

Spring-loaded holder secures large rugged tablets; interchangeable end cups allow you to modify the holder when upgrading devices
Compatible with B and C size RAM^® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

The RAM-HOL-TAB19U consists of a spring loaded back plate and custom support cups for the Panasonic Toughpad FZ-G1. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB19U is just what you need to get the most out of your tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware
(4) #8-32 x 15.87mm (5/8") Machine Screws
(4) #8-32 x 12.7mm (1/2") Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Height Range: 273.05mm - 339.72mm (10.75" - 13.375")
Width Range: 165.1mm - 196.85mm (6.5" - 7.75")
Depth Range: 3.30mm - 23.62mm (0.13" - 0.93")

HOLE PATTERN

4-Hole AMPS: 29.99mm - 37.99mm (1.181" x 1.496")

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

326.58 grams (0.72 lb)

ADDITIONAL INFORMATION

If your tablet has a handstrap integrated in the back, a set of risers (RAM-HOL-TAB-RISER1U or RAM-HOL-TAB-RISER2U) may be required to offset the cups to accomodate the added thickness. This holder will not support the Panasonic Toughpad FZ-G1 with an extended battery pack.

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.

Product Import / Manufacture Details

MANUFACTURER : NATIONAL PRODUCTS INC | COUNTRY OF IMPORT : USA
IMPORTED AND MARKETED BY : PLUSGROW MERCHANTRY PVT LTD (U51909MH2018PTC318387) T 31A, MIDC INDUSTRIAL AREA, HINGNA RD, NAGPUR 440016 MH
